X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-565003.png)
+ve
Positive
-ve
Negative
-ve BUS
Central Junction Fuse Box Ground Bus
User Instructions
User Instructions

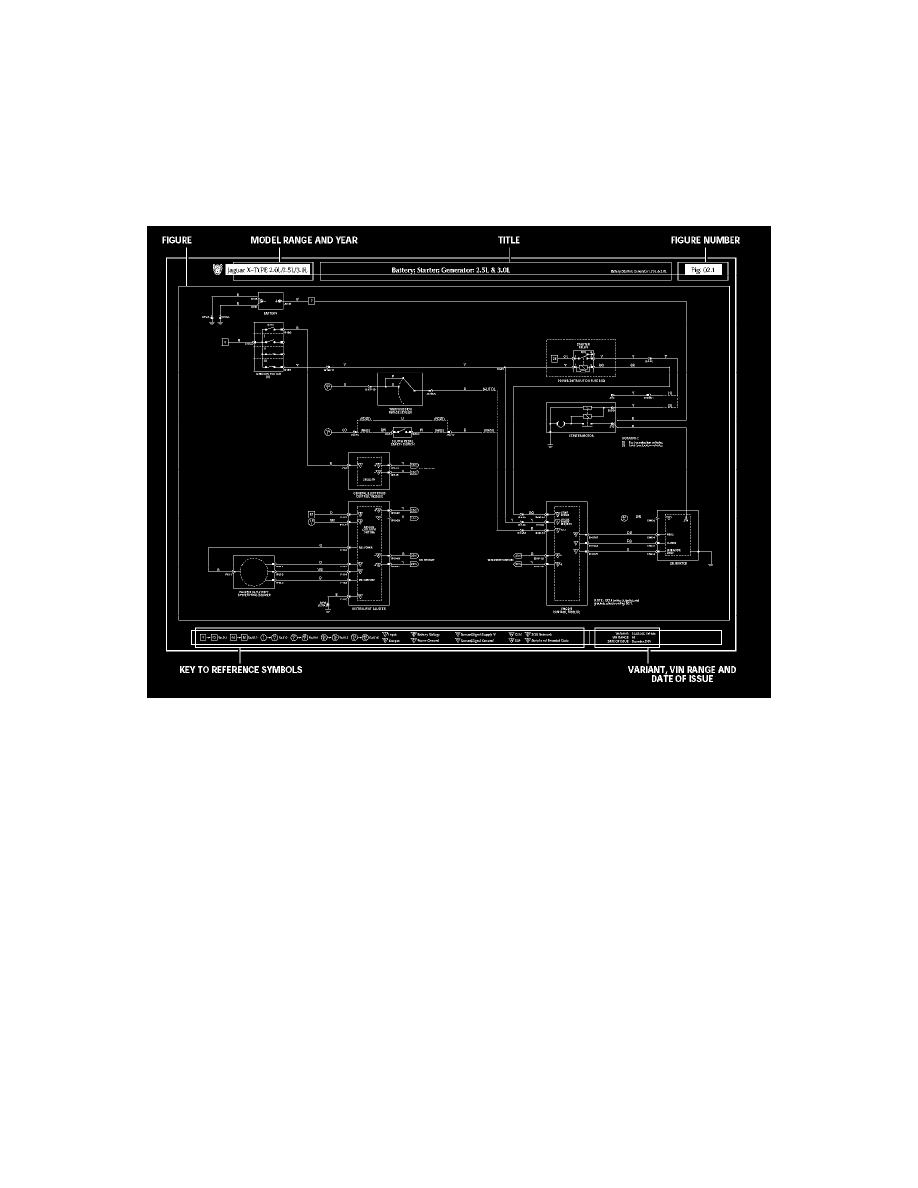

Figure and Data Layout
Figure
Figure Page
Each Figure represents a specific electrical system of the vehicle. The Figures are arranged numerically by system (01 - Power Distribution, 02 -
Battery; Starter; Generator, etc.) with variations in the system identified by a numeral following a decimal point (01.1, 01.2, etc.).
The Figures 01 - Power Distribution detail the distribution of power to each of the systems. Numbered reference symbols refer the user to a specific
Figure and from a specific Figure back to the Power Distribution Figures. This method eliminates the need to include detailed Power Distribution
information on each of the Figures.
Data
