X-Type (X400) V6-3.0L (2002)

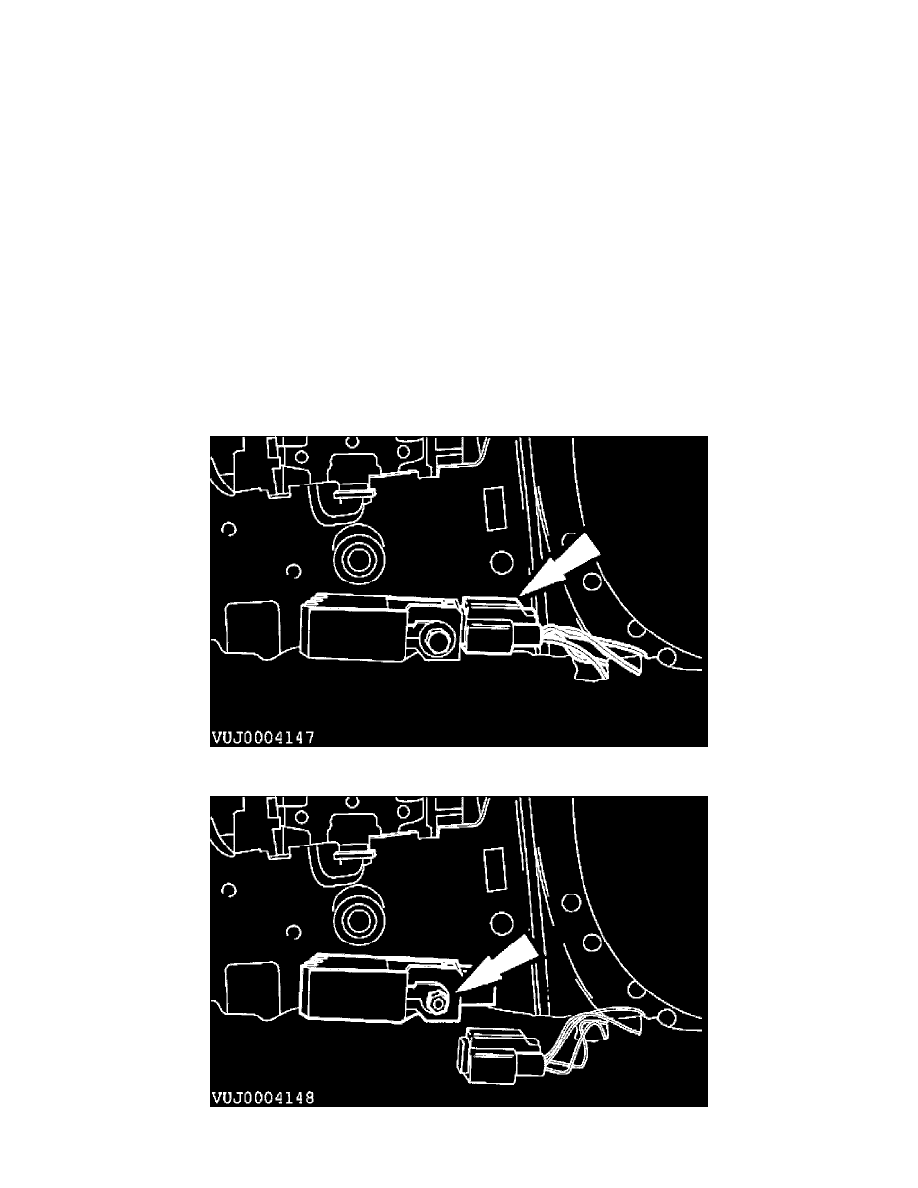

4. Disconnect the front crash sensor electrical connector.
5. Remove the front crash sensor.
Installation
WARNING:
-
Make sure the crash sensor locating tang is correctly located. Failure to follow this instruction may result in personal injury.
-
Never probe the electrical connectors of air bag modules or any other supplemental restraint system component. Failure to follow this
instruction may result in personal injury.
NOTE: Repair is made by replacement only. If a part is replaced and the new part does not correct the condition, install the original part and carry out
the diagnostic procedure again.
