Transmission Temperature Sensor/Switch, A/T > < Transmission Speed Sensor, A/T|Description and Operation

X-Type (X400) V6-3.0L (2002)

Page 2
background image

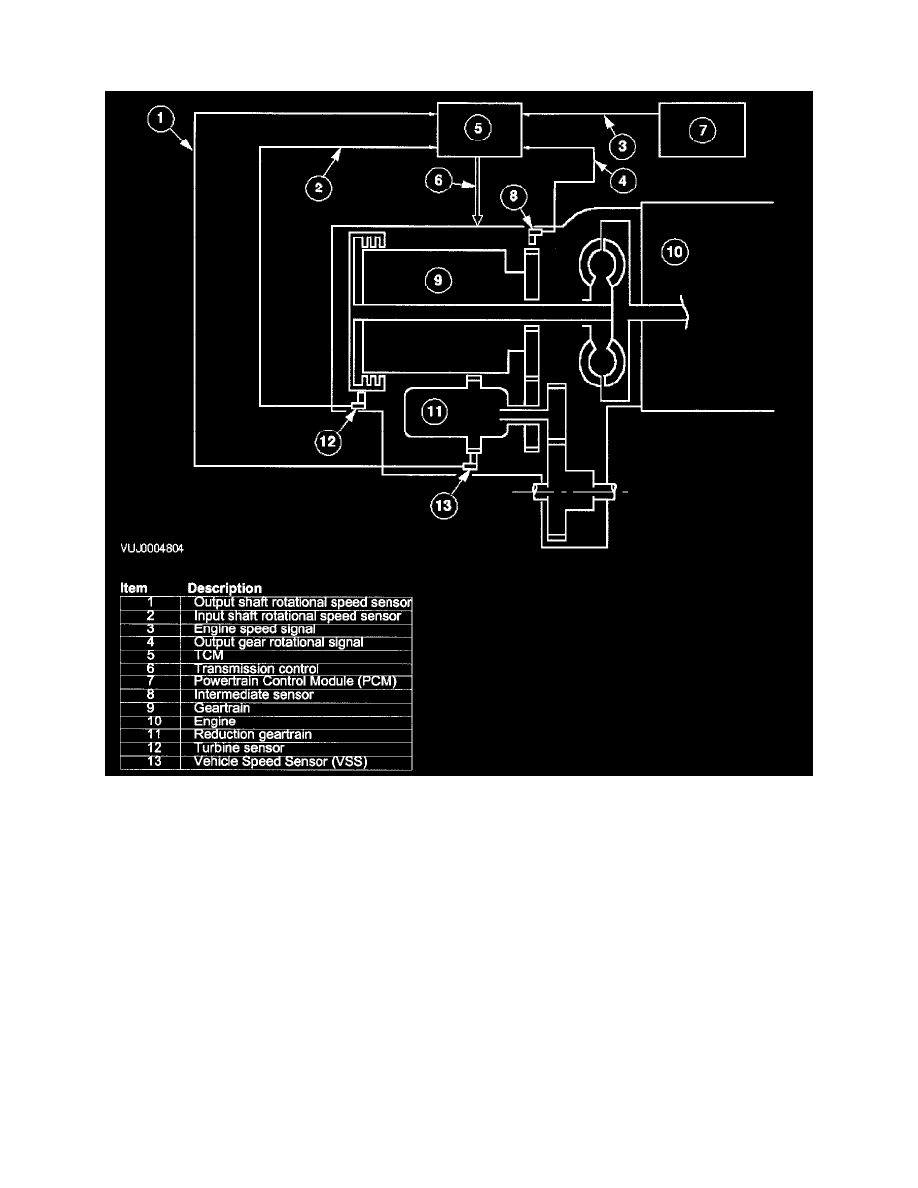

The ISS uses a magnetic coil. As the output gear rotates the sensor detects a pulse signal according to the gear teeth rotation and sends it to the TCM.
