XJ (X350) V8-4.2L (2005)
/v8-4.2l/Page-1146001.png)
Front Steering Knuckle: Service and Repair
Wheel Knuckle

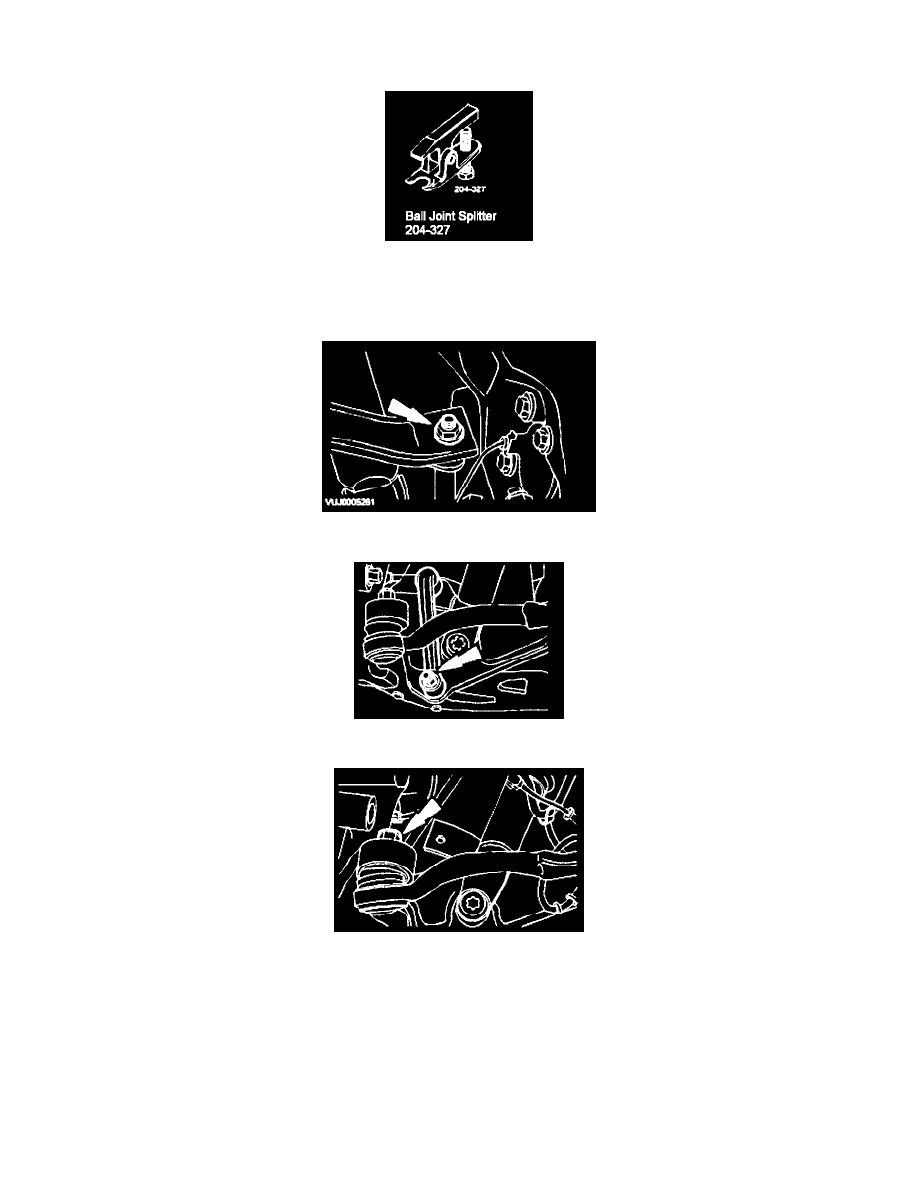

Special Service Tools
Removal
1. Remove the brake disc shield.
2. Remove the stabilizer bar link retaining nut.
3. Remove the stabilizer bar link.
4. CAUTION: Prevent the tie-rod end ball joint ball pin hexagon from rotating. Failure to do so may result in damage to the be-rod end ball joint
boot.
Detach the be-rod end.
