Fuel Pump Relay|Locations|Page 1205 > < Fuel Pump Relay|Locations

Cherokee 2WD L4-150 2.5L VIN P MFI (1991)

Page 2
background image

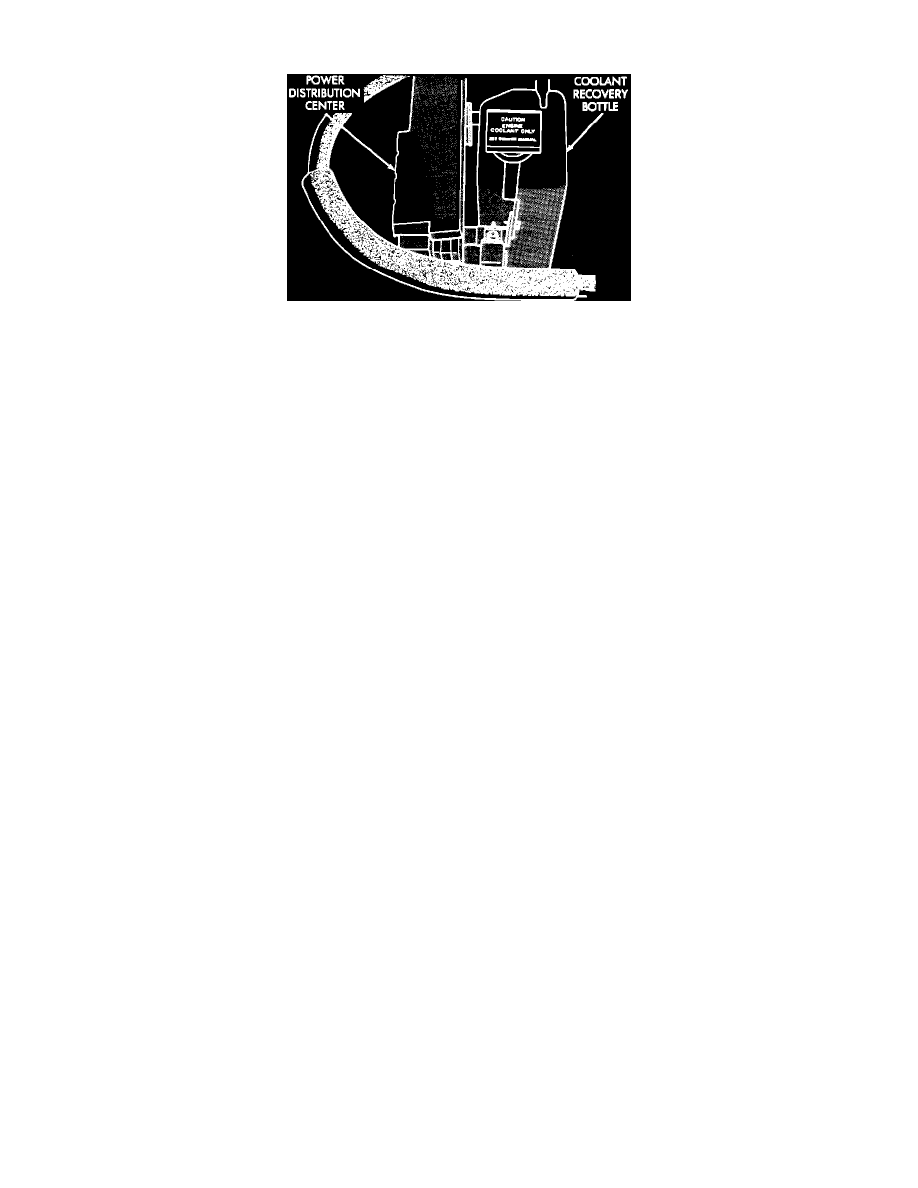

Power Distribution

These relays are located inside the Power Distribution Center.  The Power Distribution Center is located next to the coolant recovery bottle.
