Cherokee 2WD L6-4.0L VIN S (1998)
Speaker: Service and Repair
Upper
REMOVAL

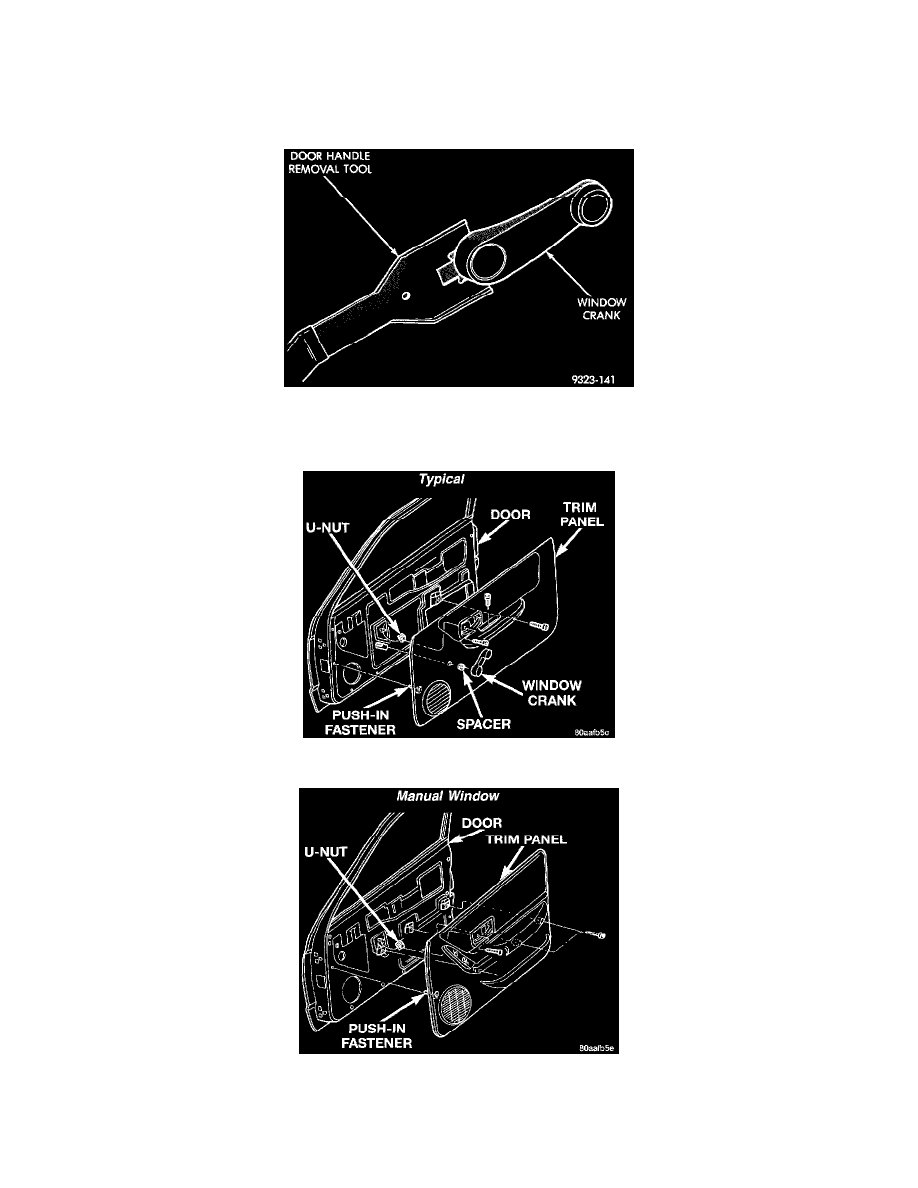

1. Remove the front door trim panel as described under Lower Front Door Speaker.
Front Door Flag Trim Panel Remove/Install
2. Remove the one screw that secures the door flag trim to the inner door panel.
3. Using a trim stick or another suitable wide flat-bladed tool, gently pry the door flag trim away from the inner door to release the trim panel
retainer.
4
Unplug the upper speaker wire harness connector.
5. Unsnap the speaker from the retainers molded into the back side of the door flag trim panel.
6. Reverse the removal procedures to install. Tighten the mounting screw to 2.2 N.m (20 in. lbs.).
Rear Headliner
The rear headliner speakers can be serviced without removing the headliner using the procedures that follow. The headliner speaker support
structure is integral to the headliner assembly.
1. Disconnect and isolate the battery negative cable.
Rear Headliner Speaker Remove/Install
2. Using a trim stick or another suitable wide flat-bladed tool, gently pry around the perimeter edge of the rear headliner speaker grille to release
the five snap retainers that secure the grille to the headliner speaker support structure.
3. Remove the speaker grille from the headliner.
4. Remove the two screws that secure the speaker to the headliner speaker support structure.
