Cherokee 2WD L6-4.0L VIN S (1998)

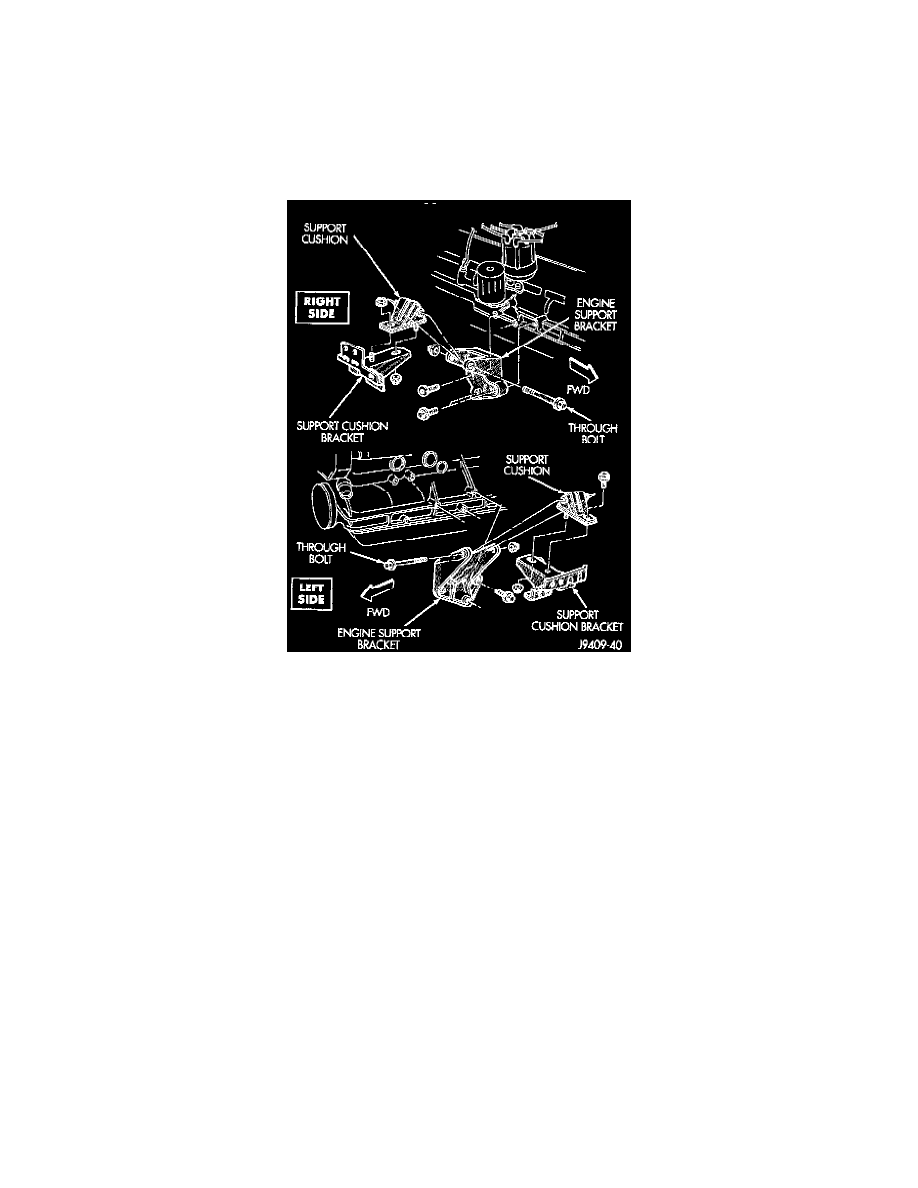

Fig.26 Support Cushion Bracket
2. If the support cushion bracket was removed, position the bracket onto the lower front sill. Install support cushion bracket bolts and nuts. Tighten
the bolts to 54 Nm (40 ft. lbs.) torque. Tighten the nuts to 41 Nm (30 ft. lbs.) torque.
3. Place the support cushion into position on the support cushion bracket. Install and tighten the bolts and nuts to 41 Nm (30 ft. lbs.) torque.
4. Install the through bolt and the retaining nut. Tighten the through bolt nut to 65 Nm (48 ft. lbs.) torque.
5. Remove the engine support.
6. Lower the vehicle.
7. Connect negative cable to battery.
