Cherokee 2WD L6-4.0L VIN S (1998)
NOTE: Assemble the timing chain, crankshaft sprocket and camshaft sprocket with the timing marks aligned.
INSTALLATION
1. Apply Mopar Silicone Rubber Adhesive Sealant, or equivalent to the keyway in the crankshaft and insert the key. With the key in the keyway on
the crankshaft, install the assembly on the crankshaft and camshaft.
2. Install the camshaft sprocket retaining preload bolt and washer. Tighten the preload bolt to 108 Nm (80 ft. lbs.) torque.

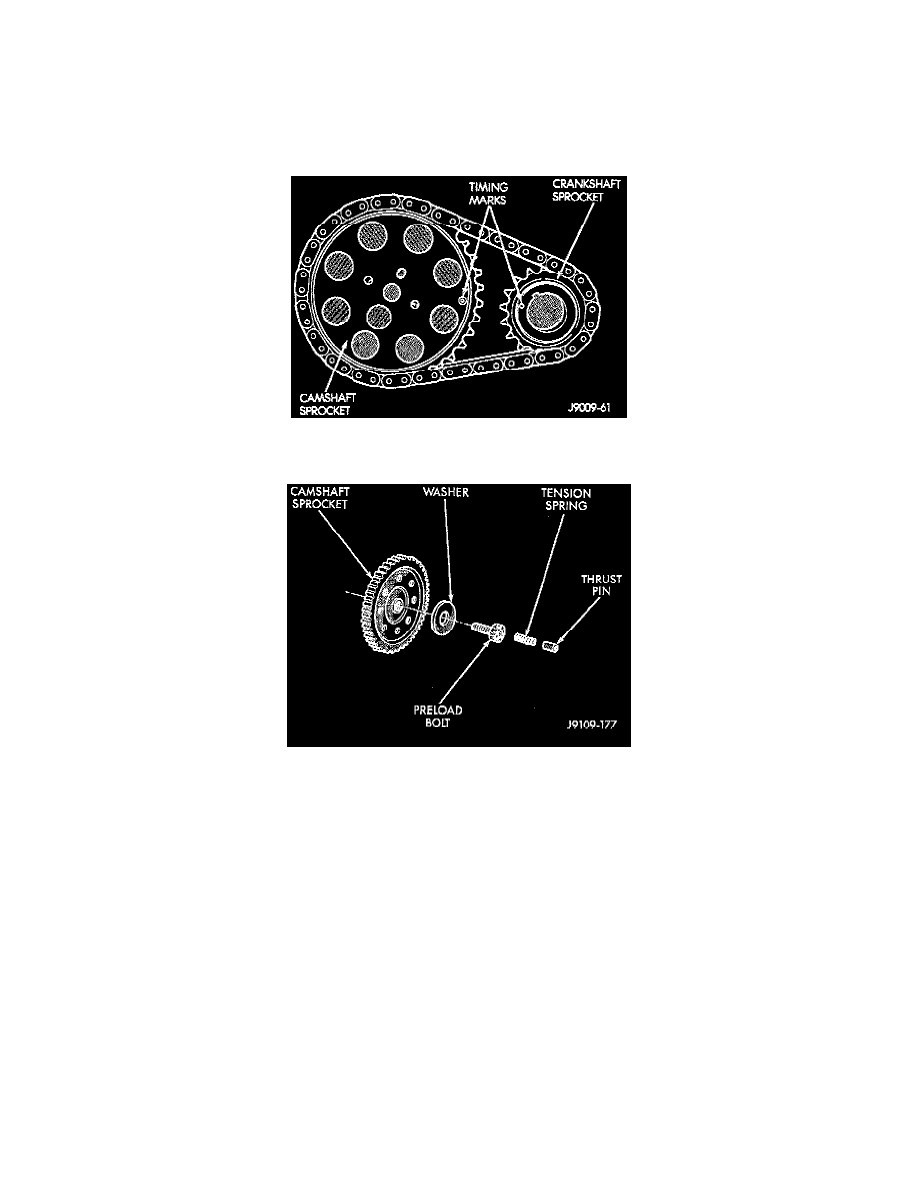

3. To verify correct installation of the timing chain, turn the crankshaft to position the camshaft sprocket timing mark as shown. Count the number of
chain pins between the timing marks of both sprockets. There must be 15 pins.
4. Install the crankshaft oil slinger.
5. Replace the oil seal in the timing case cover.
6. Lubricate the tension spring, thrust pin and pin bore in the preload bolt with Mopar Engine Oil Supplement, or equivalent. Install the spring and
thrust pin in the preload bolt head.
7. Install the timing case cover and gasket.
8. With the key installed in the crankshaft keyway, install the vibration damper, washer and bolt. Lubricate and tighten the bolt to 108 Nm (80 ft.
lbs.) torque.
9. Install the serpentine drive belt and tighten to the specified tension.
10. Install the fan and hub assembly. Install the shroud.
11. Connect negative cable to battery.
