Commander 2WD V6-3.7L VIN K (2006)

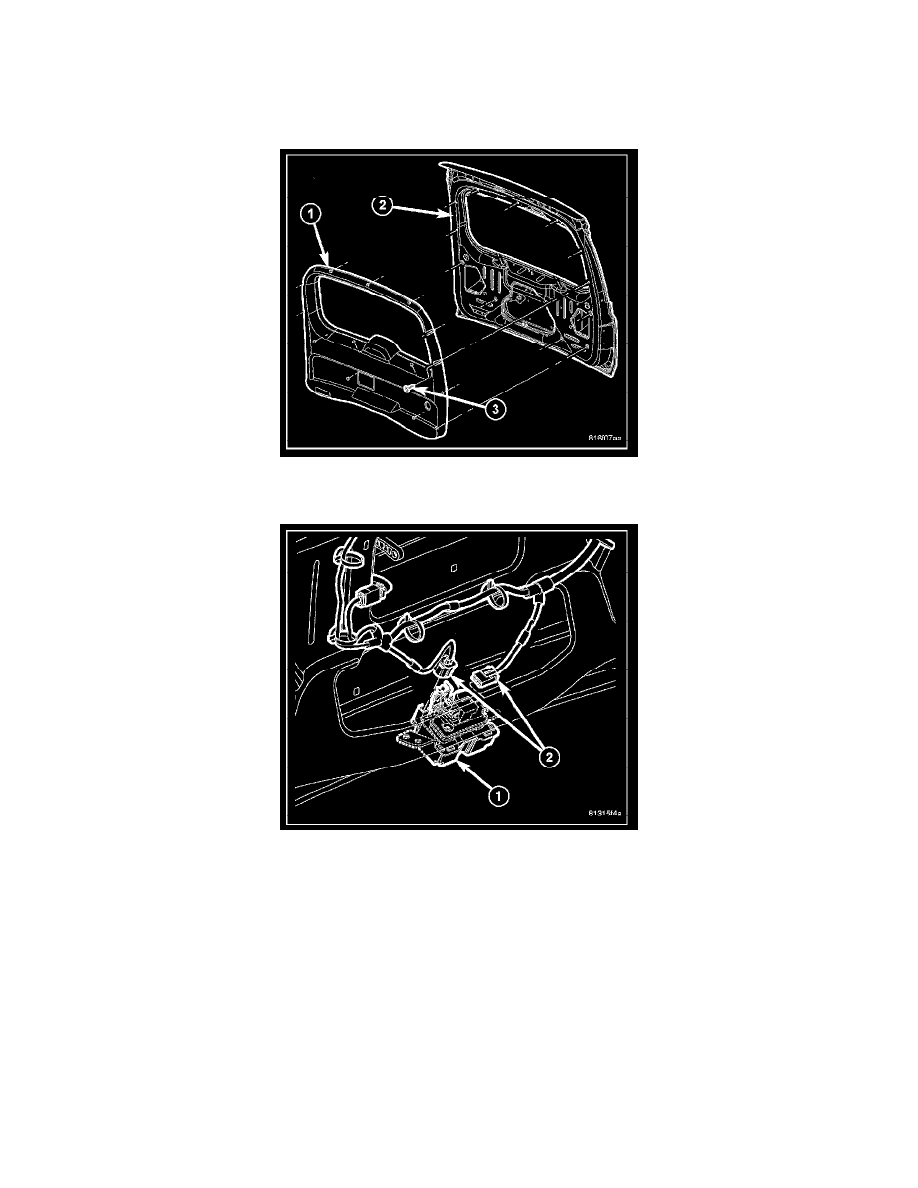

NOTE: Grand Cherokee (WK) shown, Commander (XK) similar.
1. Position the latch (3) into the inside of the liftgate and align using the marks made during removal.
2. Install and tighten the three bolts (2). Tighten the bolts to 12 N.m (9 ft.lbs).
3. Connect electrical connectors (1) to the latch (3).
4. Check and adjust the glass position, if necessary.
5. Install the trim panel.
6. Connect the battery negative cable.
