Compass 2WD L4-2.0L VIN 0 (2007)
Steering Mounted Controls Communication Module: Diagrams
Component ID:
167
Component :
MODULE-STEERING CONTROL
Connector:
Name :

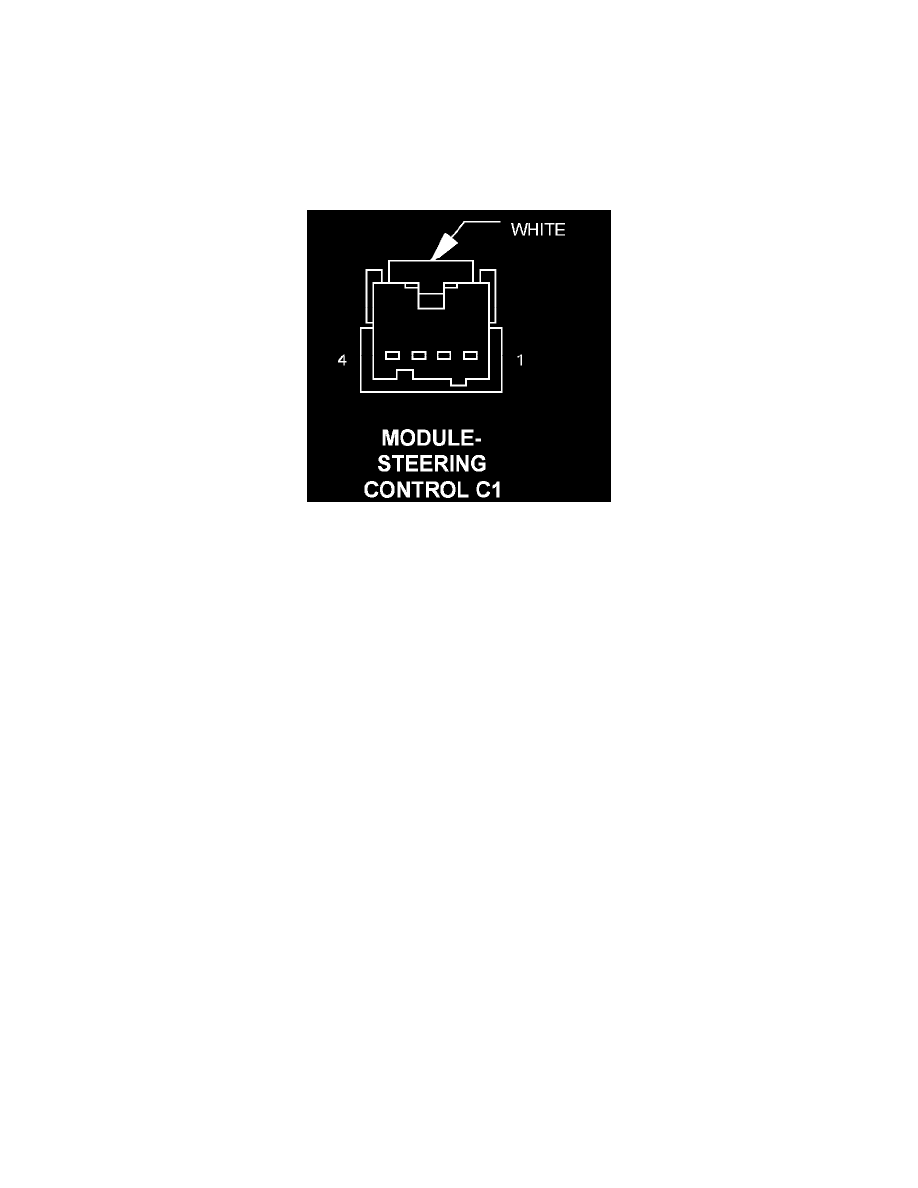

MODULE-STEERING CONTROL C1
Color :
WHITE
# of pins :
4
Pin
Description
Circuit
1
GROUND
Z937 20BK/YL
Pin
Description
Circuit
1
GROUND
Z936 20BK/LB
2
FUSED B(+) (I.O.D.)
A411 20RD/LG
3
LIN BUS
D506 20WT/DG
4
IGNITION SWITCH OUTPUT (RUN-START) F202 18PK/GY
Component Location - 33
