Compass 2WD L4-2.4L (2008)
Front Fender Liner: Service and Repair
Front Wheelhouse Splash Shield - Removal
REMOVAL

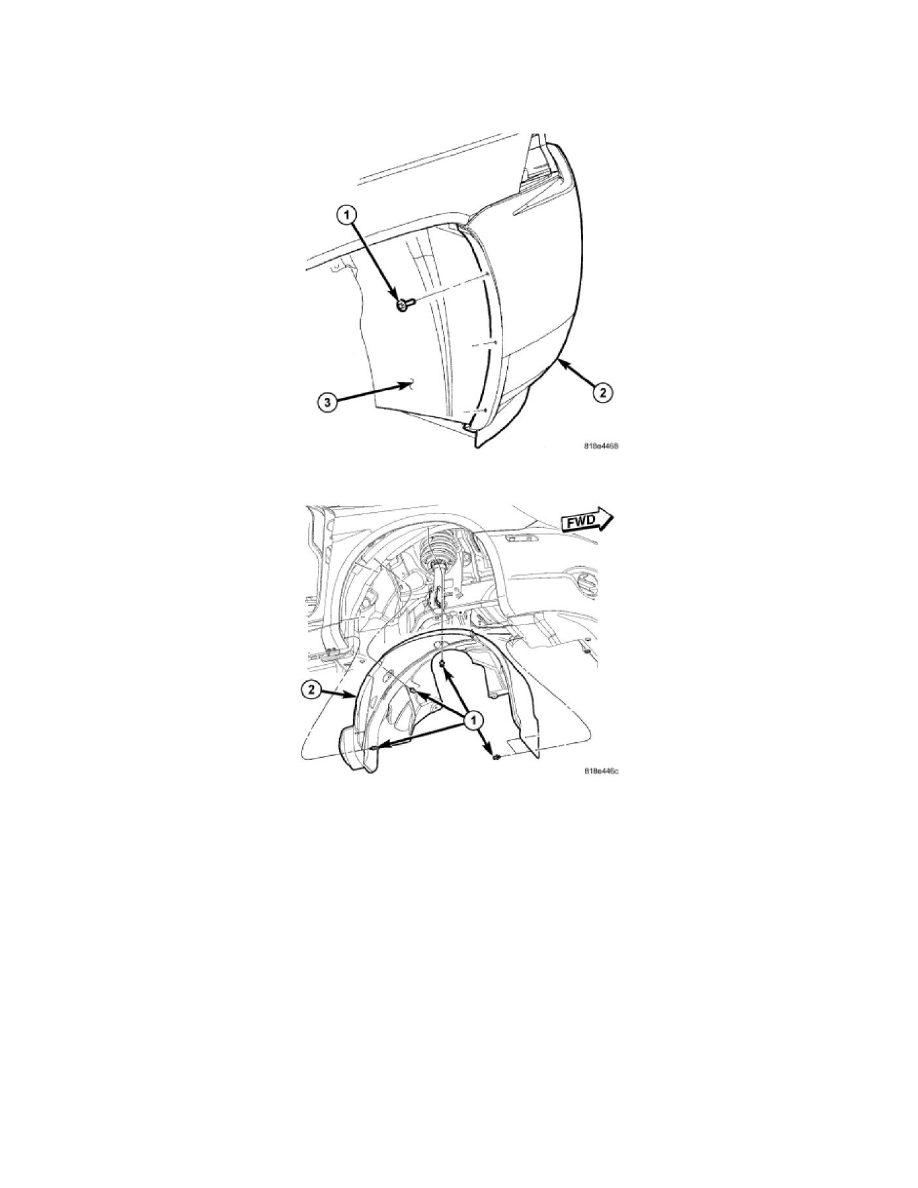

1. Remove the front fasteners (1).
2. Remove the remaining fasteners (3 - 5) and remove the splash shield (6).
Front Fender Liner: Service and Repair
Front Wheelhouse Splash Shield - Removal
REMOVAL
1. Remove the front fasteners (1).
2. Remove the remaining fasteners (3 - 5) and remove the splash shield (6).
