Glove Compartment: Service and Repair
Instrument Panel Glove Box - Removal

REMOVAL

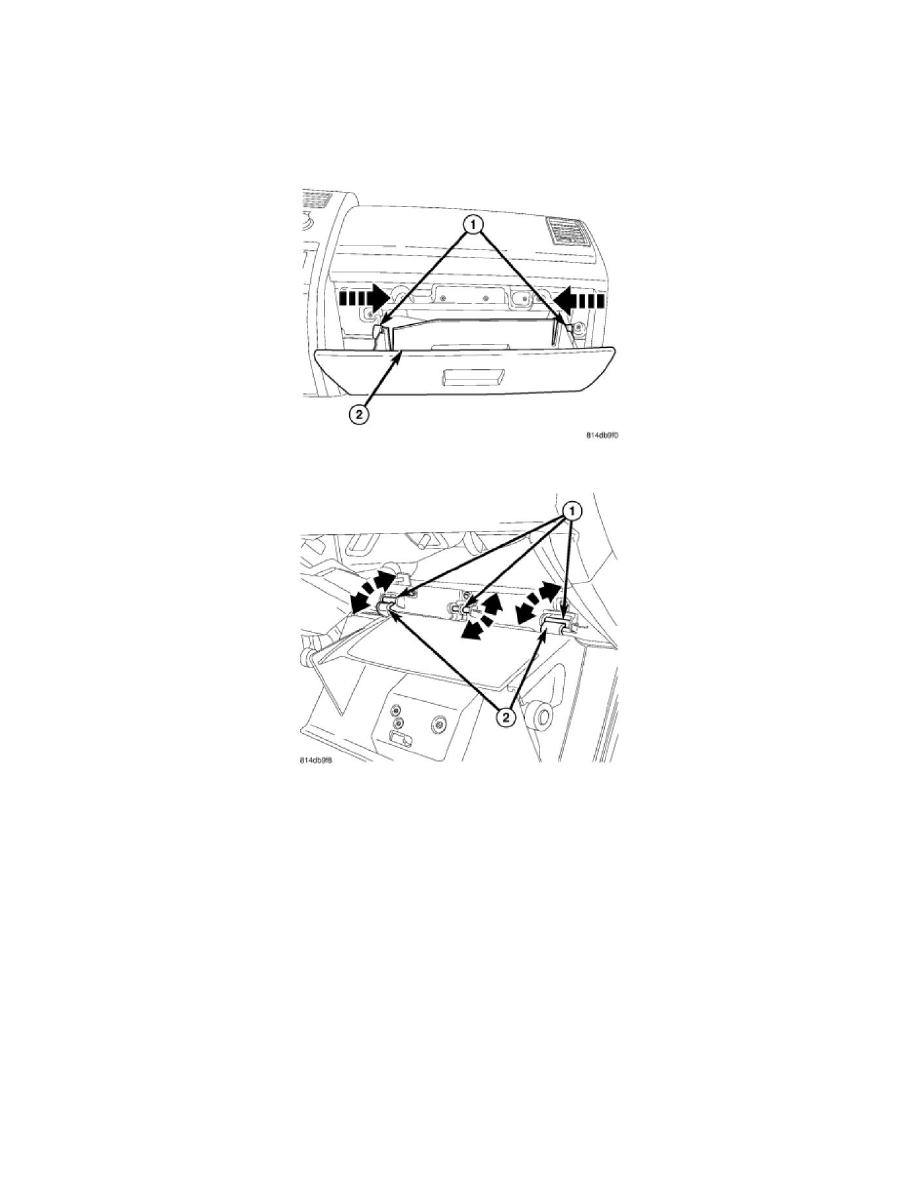

NOTE: ND vehicle line shown, MK vehicle line similar.

1. Open the glove box and squeeze the stop tabs inward.

2. Lower the glove box and release the hinges (1) using a twisting motion and remove the glove box.
