Compass 2WD L4-2.4L (2008)
1. Position the second row center seat belt and retractor unit (2) onto the right quarter inner panel.
2. Install and tighten the screw (3) that secures the retractor lower bracket to the right quarter inner panel. Tighten the screw to 40 Nm (30 ft. lbs.).
3. Position the seat belt turning loop to the upper D-pillar. Be certain the seat belt webbing between the retractor and the turning loop is not twisted.
4. Install and tighten the screw (1) that secures the seat belt turning loop to the upper D-pillar. Tighten the screw to 40 Nm (30 ft. lbs.).
5. Route the second row center seat belt latch plate and lower anchor (5) through the seat belt opening in the upper D-pillar trim (4).
6. Reinstall the upper trim onto the inside of the right D-pillar. See: Body and Frame/Interior Moulding / Trim/Trim Panel/Service and Repair/Pillar
Trim/D-Pillar Trim/Installation.

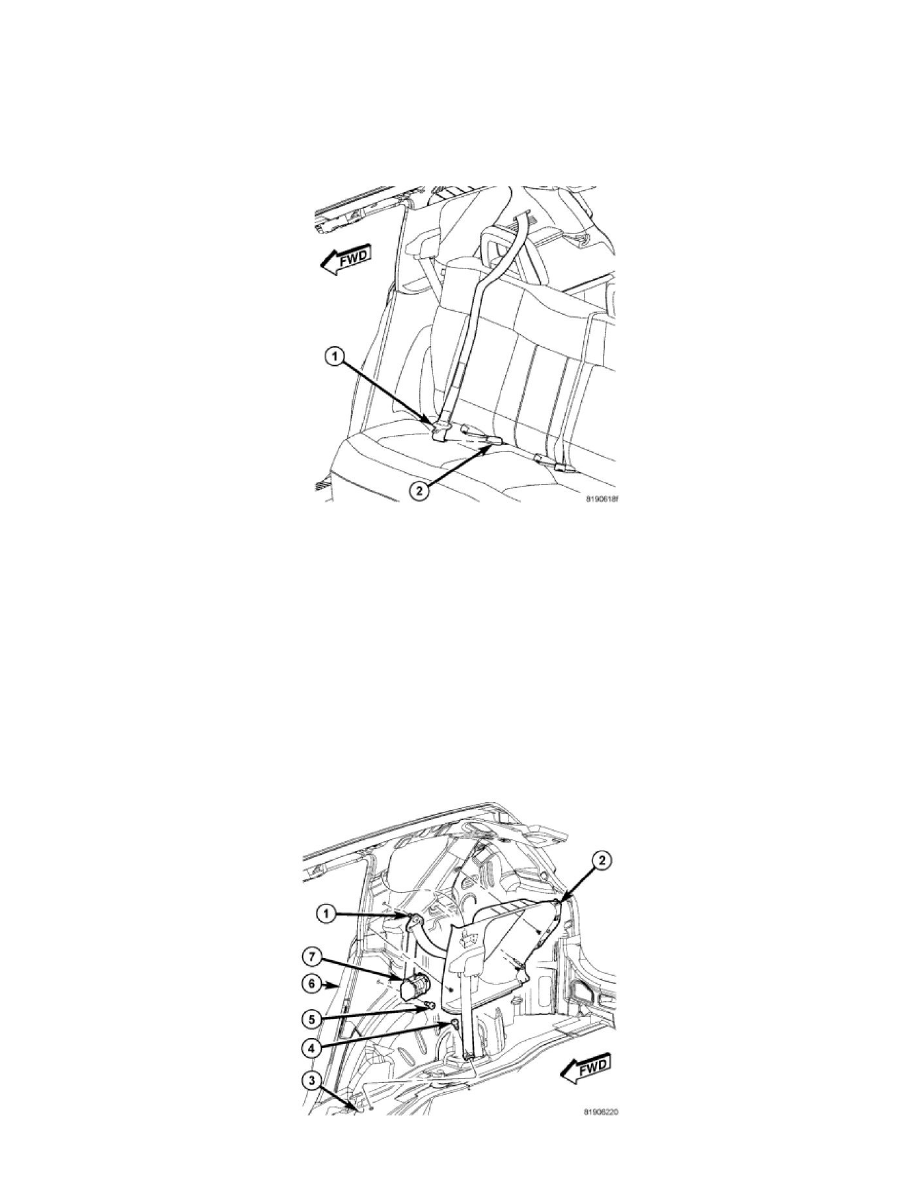

7. Access and buckle the second row center seat belt lower anchor latch plate (1) to the unique, keyed lower anchor buckle (2).
Second Row Outboard
SECOND ROW OUTBOARD
WARNING: To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts,
buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut,
frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or
retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the
anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or
ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler
Mopar(R) Parts Catalog.
NOTE: All seat belt retractors except the driver side front retractor include a switchable automatic locking mechanism. See: Seat Belt
Retractor/Description and Operation/Description.
