Compass 4WD L4-2.4L VIN W (2007)
Speaker: Locations

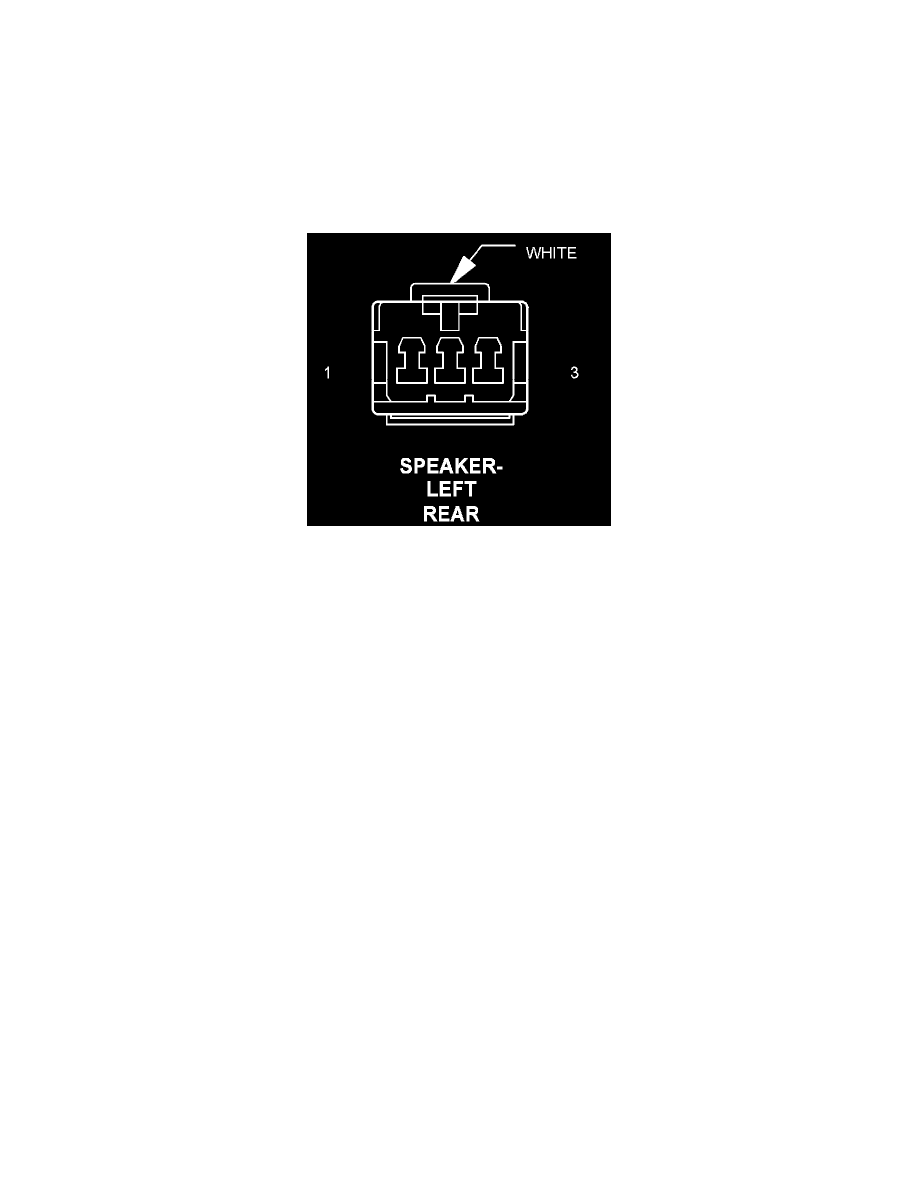

Speaker-Left Rear
Component ID:
340
Component :
SPEAKER-LEFT REAR
Connector:
Name :
SPEAKER-LEFT REAR
Color :
WHITE
# of pins :
3
Pin
Description
Circuit
1
LEFT REAR SPEAKER (+)
X51 18DG/DB
Pin
Description
Circuit
1
AMPLIFIED LEFT REAR SPEAKER (+)
X205 18GY/LG
2
-
-
3
LEFT REAR SPEAKER (-)
X57 18DG/BR
3
AMPLIFIED LEFT REAR SPEAKER (-)
X295 18GY/DG
Component Location - 54
