Grand Cherokee 2WD V8-4.7L VIN J (2004)

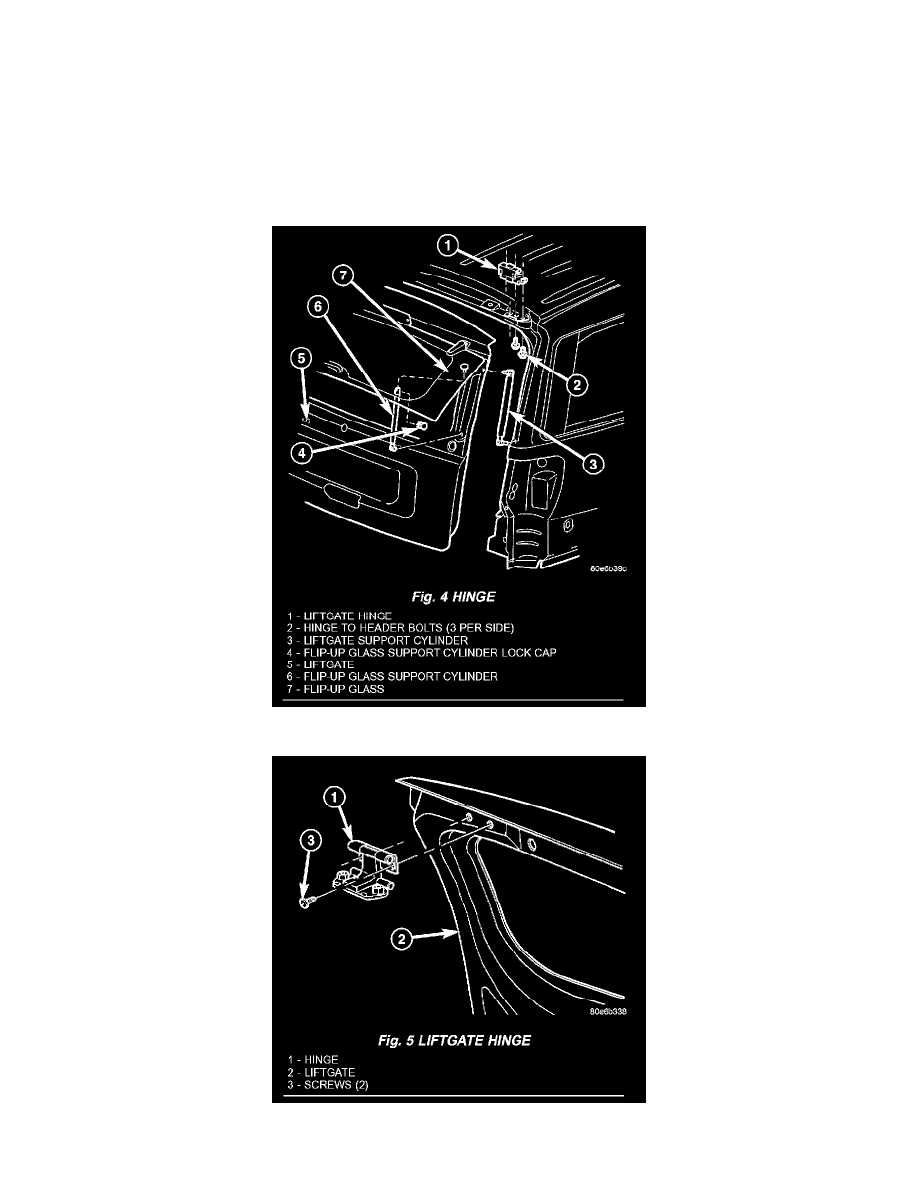

4. Remove the hinge screws and remove the hinge. (Fig. 4) and (Fig. 5)
INSTALLATION
NOTE: It is not necessary to remove the liftgate to replace one or both hinges. The hinges can be replaced one at a time.
NOTE: Use a suitable body sealer on the hinge to body mating surfaces prior to installation.
1. Position the hinge on the roof panel and on the liftgate.
2. Install and tighten hinge screws at roof panel to 28 N.m (21 ft. lbs.).
3. Install hinge screws at liftgate and tighten to 28 N.m (21 ft. lbs.).
4. Install the upper liftgate opening trim panel.
5. Check the liftgate for proper alignment and operation.
6. Check for water leaks at hinge to body screws.
