Grand Cherokee 2WD V8-4.7L VIN J (2004)
Seat Heater Switch: Service and Repair
Passenger Heated Seat Switch Replacement
REMOVAL
WARNING: REFER TO THE RESTRAINTS SECTION BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN,
OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD
RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
1. Disconnect and isolate the battery negative cable.
2. Remove the center lower bezel from the instrument panel. Refer to Instrument Panel Center Lower Bezel in the Body section for the procedure.

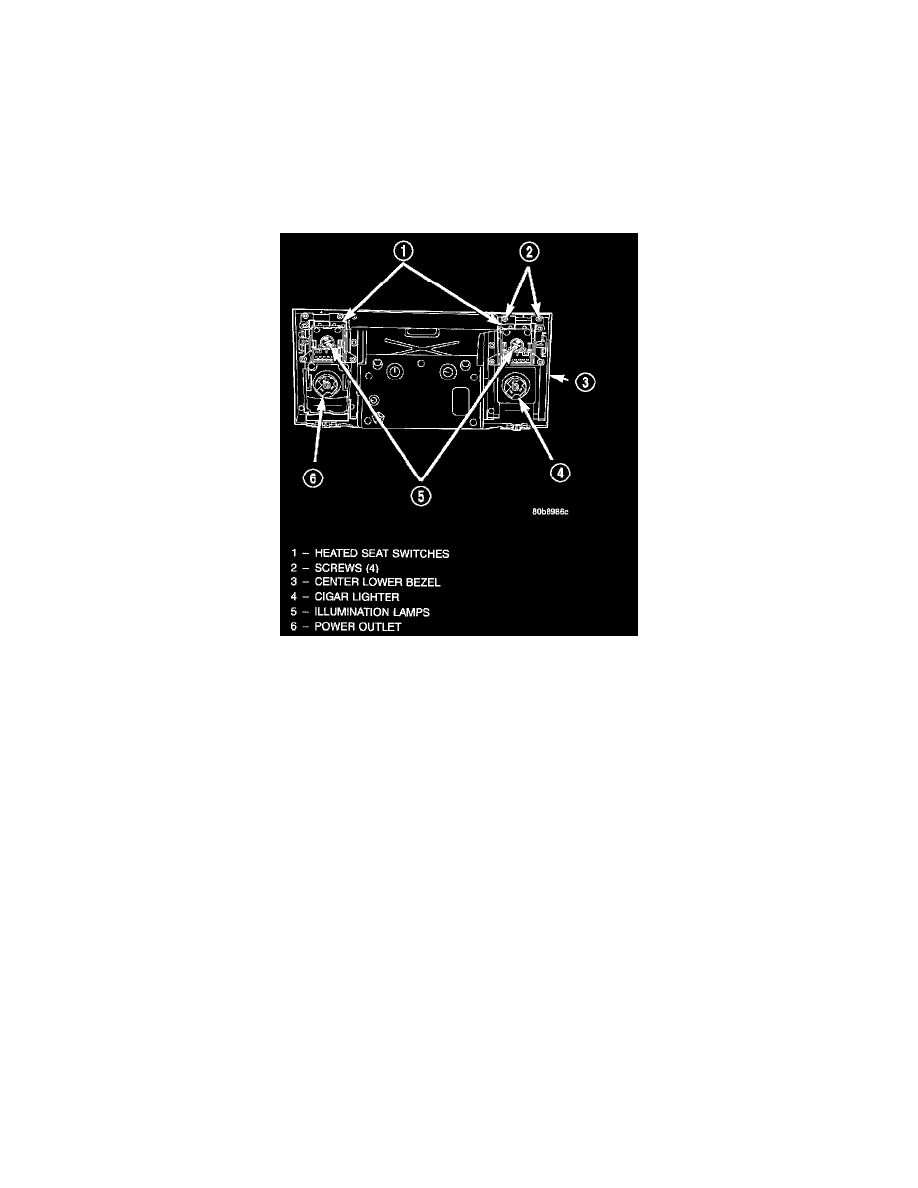

Heated Seat Switch Remove/Install
3. Remove the four screws that secure the heated seat switch to the back of the instrument panel center lower bezel.
4. Remove the heated seat switch from the back of the instrument panel center lower bezel.
INSTALLATION
1. Position the heated seat switch onto the back of the instrument panel center lower bezel.
2. Install and tighten the four screws that secure the heated seat switch to the back of the instrument panel center lower bezel. Tighten the screws to
1.5 Nm (13 in. lbs.).
3. Install the center lower bezel onto the instrument panel. Refer to Instrument Panel Center Lower Bezel in the Body section for the procedure.
4. Reconnect the battery negative cable.
