Grand Cherokee 2WD V8-4.7L VIN J (2004)

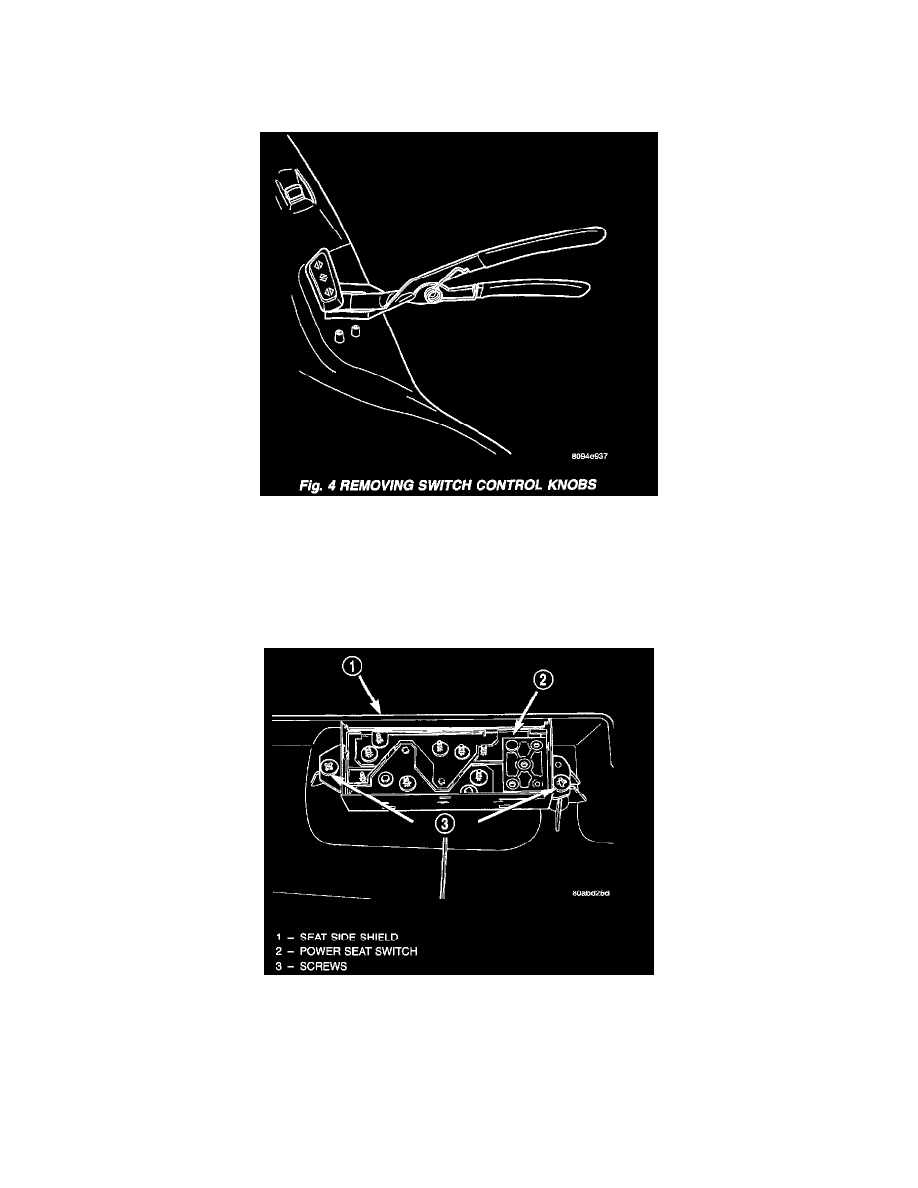

Fig.7 Ten-Way Power Seat Switches Remove/Install
6. Remove the two screws that secure the power seat switch to the inside of the outboard seat cushion side shield.
7. Remove the power seat switch from the outboard seat cushion side shield.
INSTALLATION
1. Position the power seat switch onto the outboard seat cushion side shield.
2. Install and tighten the two screws that secure the power seat switch to the inside of the outboard seat cushion side shield. Tighten the screws to 1.5
Nm (14 in. lbs.).
3. Reconnect the power seat wire harness connector to the power seat switch connector receptacle.
4. Position the outboard seat cushion side shield onto the seat cushion frame
5. Install and tighten the three screws that secure the outboard seat cushion side shield to the seat cushion frame. Tighten the screws to 1.5 Nm (14
in. lbs.).
6. On models with the ten-way power seat system only position the power seat and power recliner switch knobs onto the switch stems and push on
them firmly and evenly until they snap into place.
7. Reconnect the battery negative cable.
