Grand Cherokee 4WD V8-4.7L (2003)
Rear Door Panel: Service and Repair
Waterdam
WATERDAM
REMOVAL
1. Remove the door speaker.
2. Peel the waterdam from door.
3. Route all harnesses and linkage rods through waterdam as necessary.

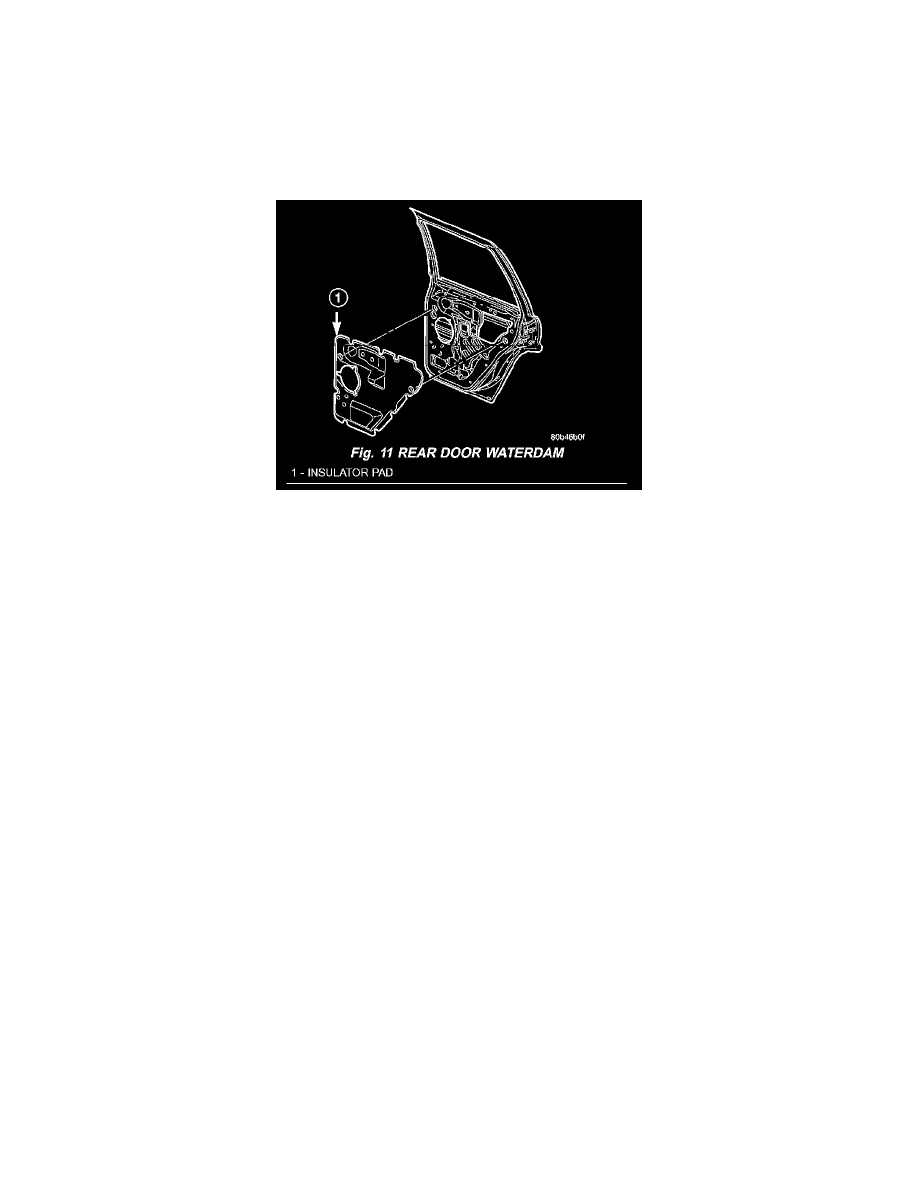

Fig. 11
4. Separate waterdam from door (Fig. 11).
INSTALLATION
1. Waterdam contact surface must be free of contaminants. Clean as necessary.
2. Route all harnesses and linkage rods through waterdam as necessary.
3. Position waterdam on door and align all holes (Fig. 11).
4. Press waterdam on door.
5. Install the door speaker.
