Grand Cherokee 4WD V8-4.7L (2003)
13.
Remove and save the inner seatback hinge black plastic bushing.
14.
Turn the seat cushion upside down and unlatch the plastic "J" strap on the inboard side of the cushion.
15.
Unhook the plastic clip on the outboard side of the cushion.
16.

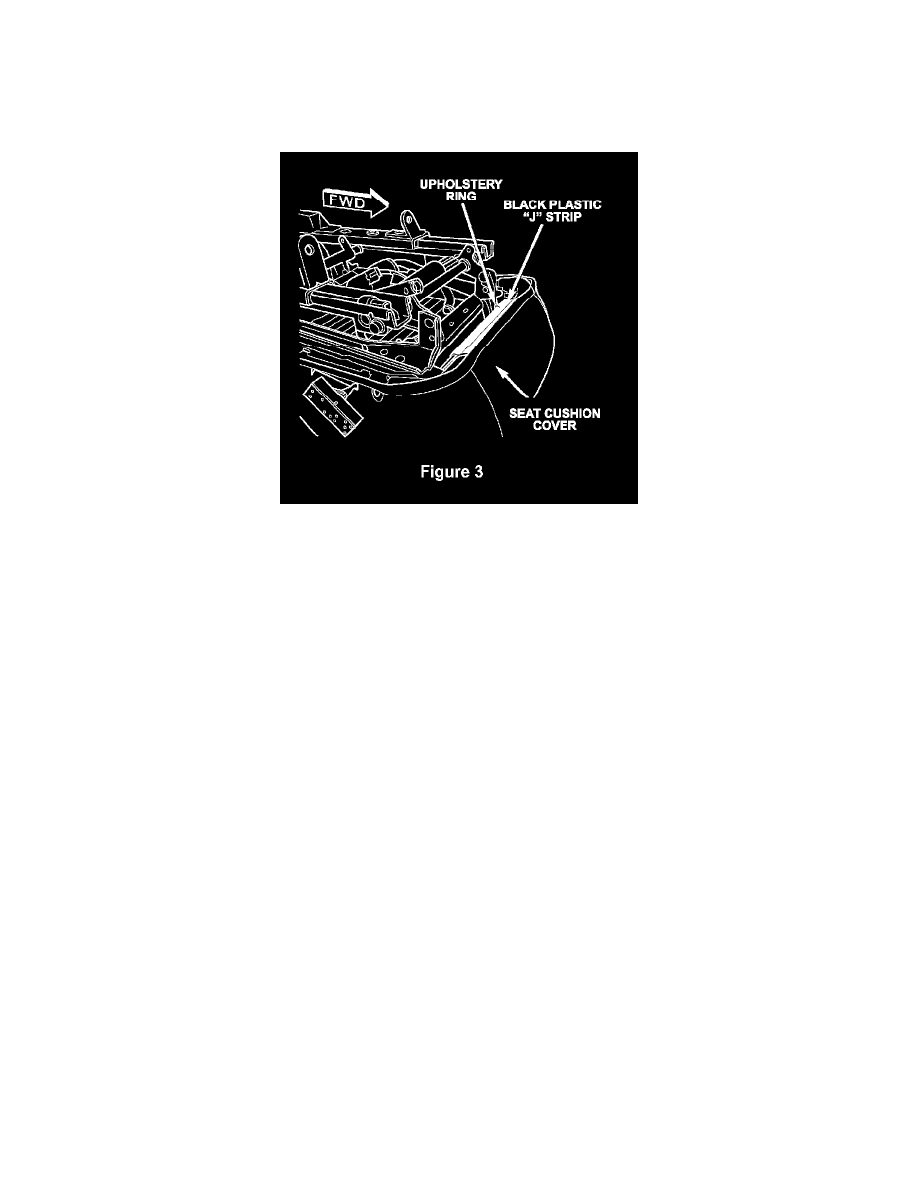

Remove the metal upholstery ring from front "J" strap (Figure 3).
17.
Unlatch the front "J" strap.
18.
Turn the seat over and carefully lift the seat cover to expose the upholstery rings. Carefully cut off all of the upholstery rings.
19.
Carefully remove the seat cover from the foam seat cushion.
20.
Carefully remove and discard the old seat heater element from the seat foam.
CAUTION:
Never apply the new heating element over the old element. The old heating element must be removed and discarded.
