Grand Cherokee 4WD V8-4.7L (2003)
5. Install piston into caliper bore and press piston down to the bottom of the caliper bore by hand or with hammer handle.

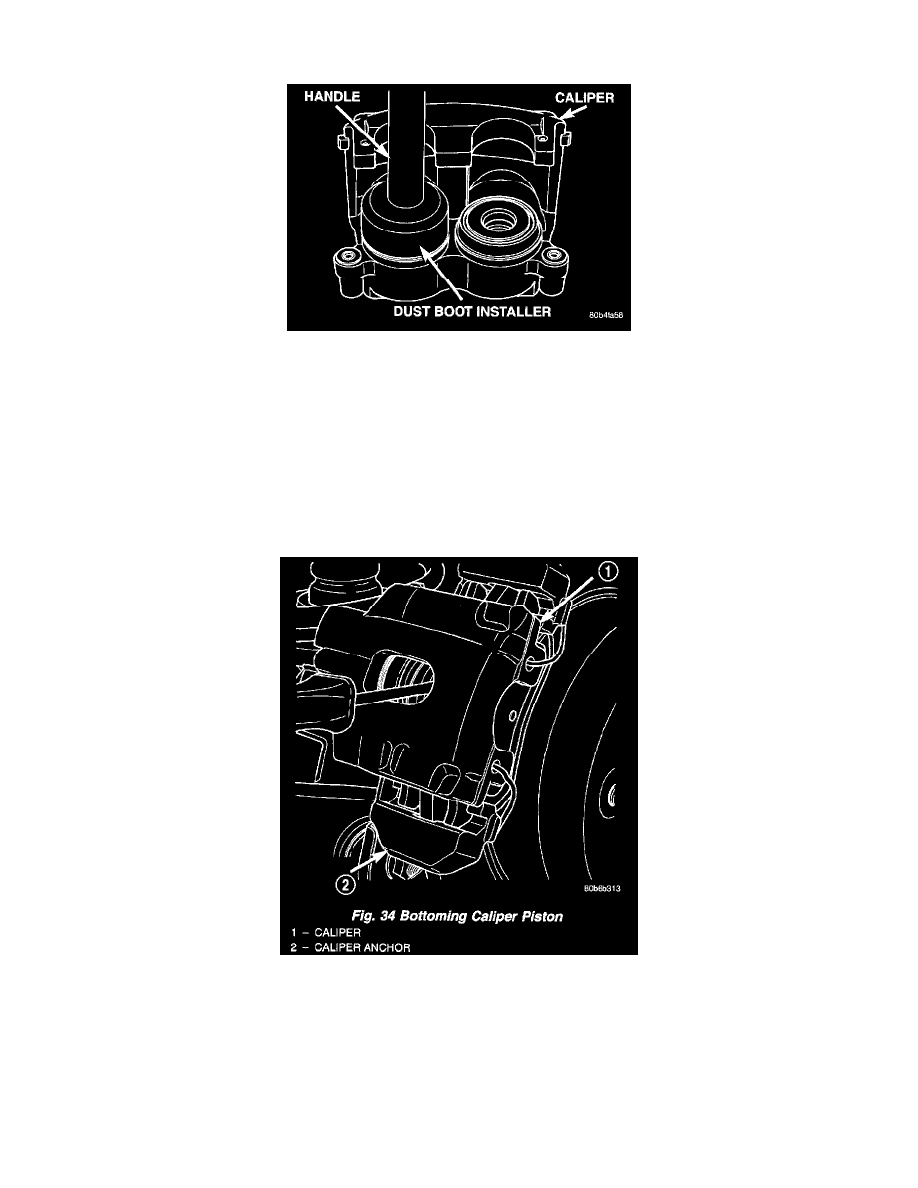

Seating Dust Boot
6. Seat dust boot in caliper with Installer 8280 and Handle C-4171.
7. Install the second piston and dust boot.
8. Install caliper bleed screw.
Removal and Installation
REMOVAL - REAR DISC BRAKE CALIPER
1. Raise and support vehicle.
2. Remove rear wheel and tire assembly.
3. Drain small amount of fluid from master cylinder brake reservoir with a clean suction gun.
4. Bottom caliper pistons into the caliper by prying the caliper over.
5. Remove brake hose banjo bolt and discard gasket washers.
