Grand Cherokee 4WD V8-4.7L (2003)
Crankshaft Main Bearing: Specifications
Torque Specifications

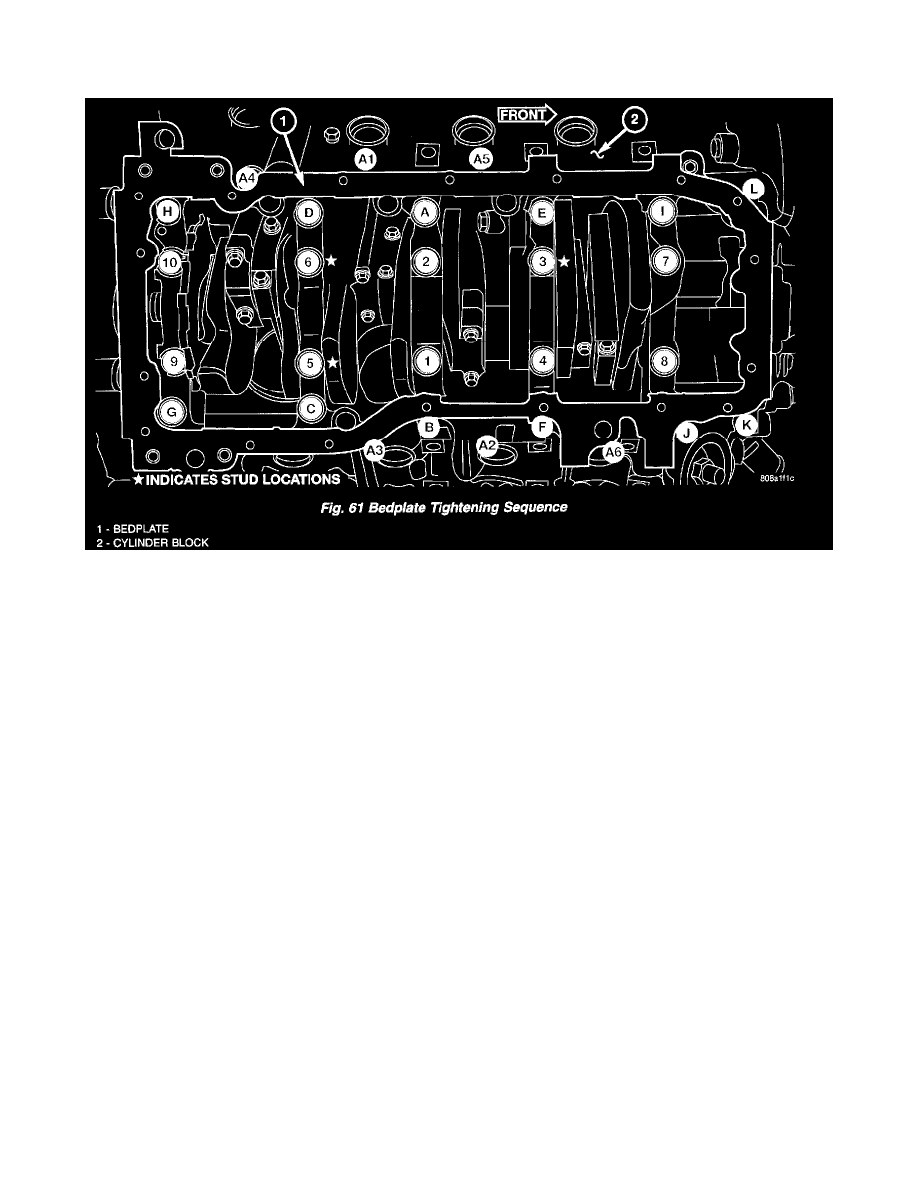

Install the bedplate retaining bolts, making sure to place the stud bolts in the correct location. Torque the bolts in the sequence shown.
-
Tighten bolts A - L to 54 Nm (40 ft. lbs.).
-
Tighten bolts 1 - 10 to 2.8 Nm (25 in. lbs.).
-
Turn bolts 1 - 10 an additional 90 °.
-
Tighten bolts A1- A6 to 27 Nm (20 ft. lbs.).
