Grand Cherokee 4WD V8-4.7L (2003)

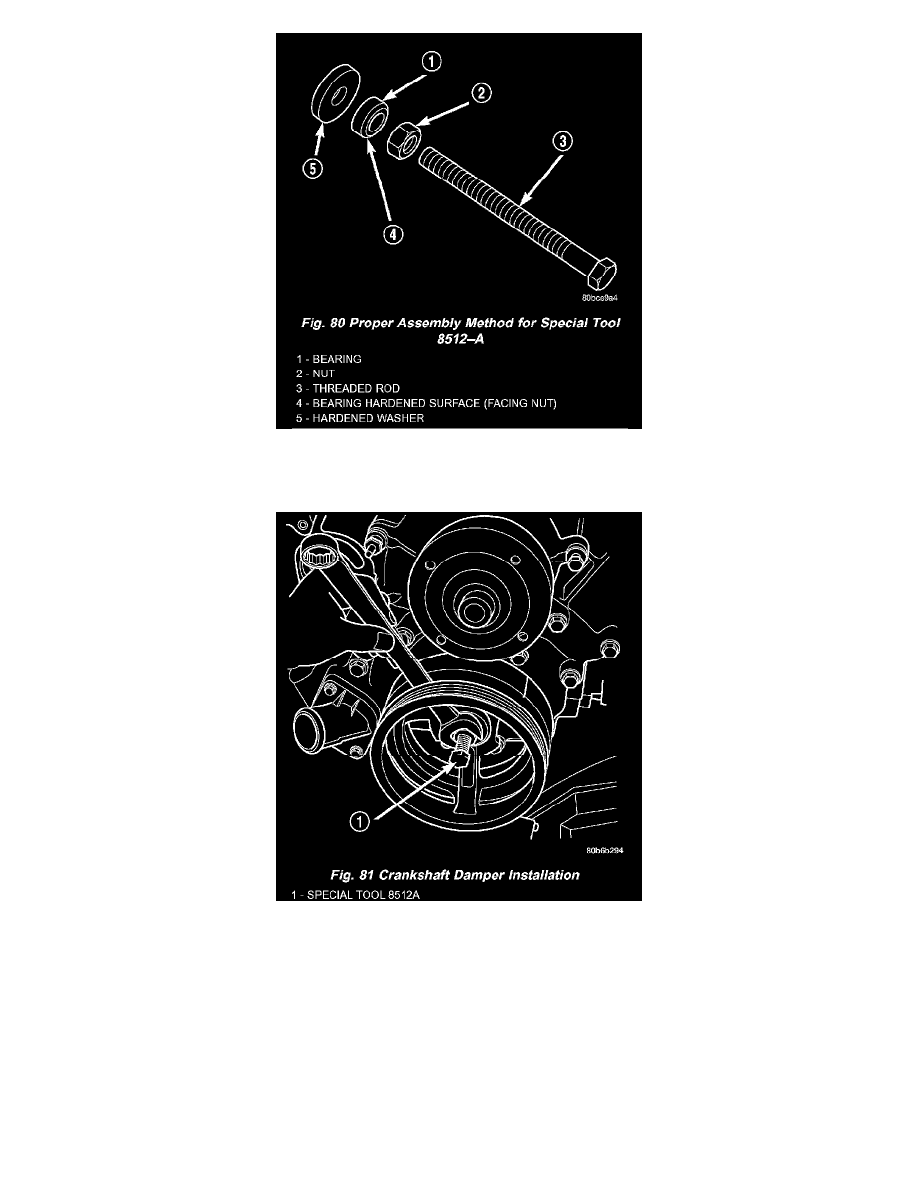

2. Assemble Special Tool 8512-A as follows, The nut is threaded onto the shaft first. Then the roller bearing is placed onto the threaded rod (The
hardened bearing surface of the bearing MUST face the nut). Then the hardened washer slides onto the threaded rod (Fig. 80). Once assembled
coat the threaded rod's threads with Mopar Nickel AntiSeize or (Loctite No. 771).
3. Using Special Tool 8512A, press damper onto crankshaft (Fig. 81).
4. Install then tighten crankshaft damper bolt to 175 Nm (130 ft. lbs.).
5. Install accessory drive belt.
6. Connect negative cable to battery.
