Grand Cherokee 4WD V8-4.7L (2003)

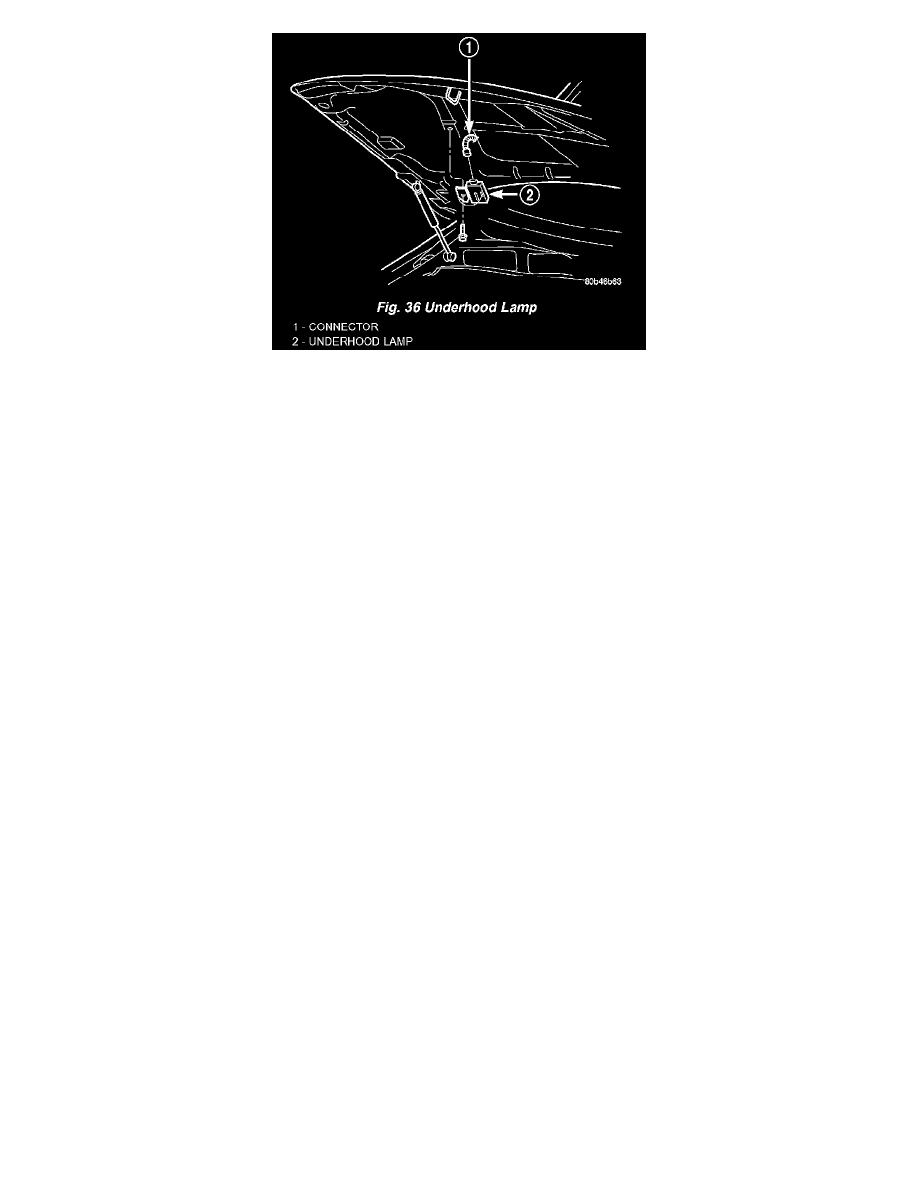

Fig.36 Underhood Lamp
2. Remove the screw attaching underhood lamp to inner hood panel.
3. Remove the underhood lamp from the vehicle.
INSTALLATION
Bulb
1. Engage the replacement bulb wire loop to terminal closest to lamp base wire connector.
2. Depress the opposite terminal inward and engage the remaining bulb wire loop.
3. Position the lamp lens on the lamp base and press into place.
Lamp
1. Position the underhood lamp on the hood inner panel.
2. Install the screw attaching the lamp base to the inner hood panel.
3. Install the lamp housing and press into place.
4. Connect the wire harness connector.
