Grand Cherokee 4WD V8-4.7L (2003)
Power and Ground Distribution
Relays and Modules - Power and Ground Distribution
Relay Box / Locations
Page 5621
Page 1

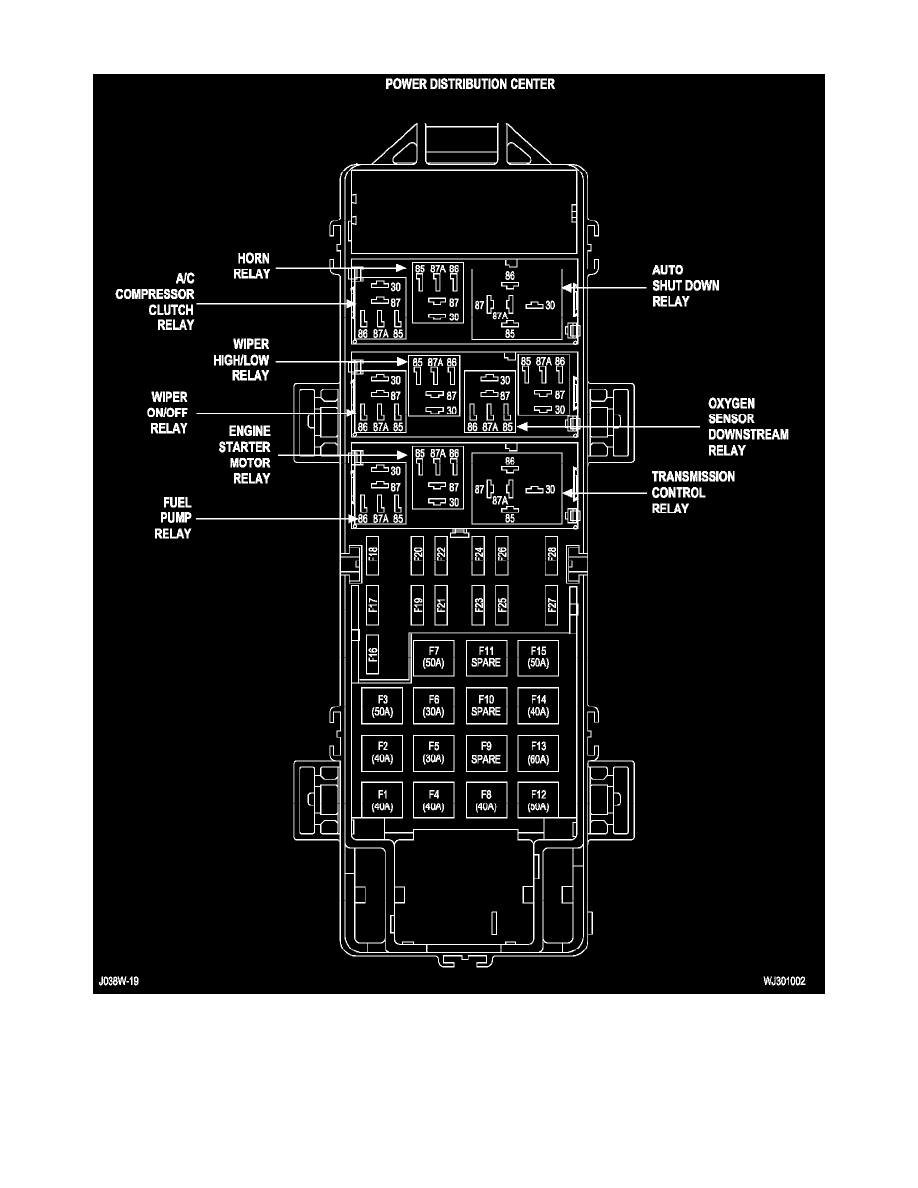

Relay Box: Diagrams
8w-10-2 Power Distribution Center
Power and Ground Distribution
Relays and Modules - Power and Ground Distribution
Relay Box / Locations
Page 5621
