Grand Cherokee 4WD V8-4.7L (2003)

Page 1
background image

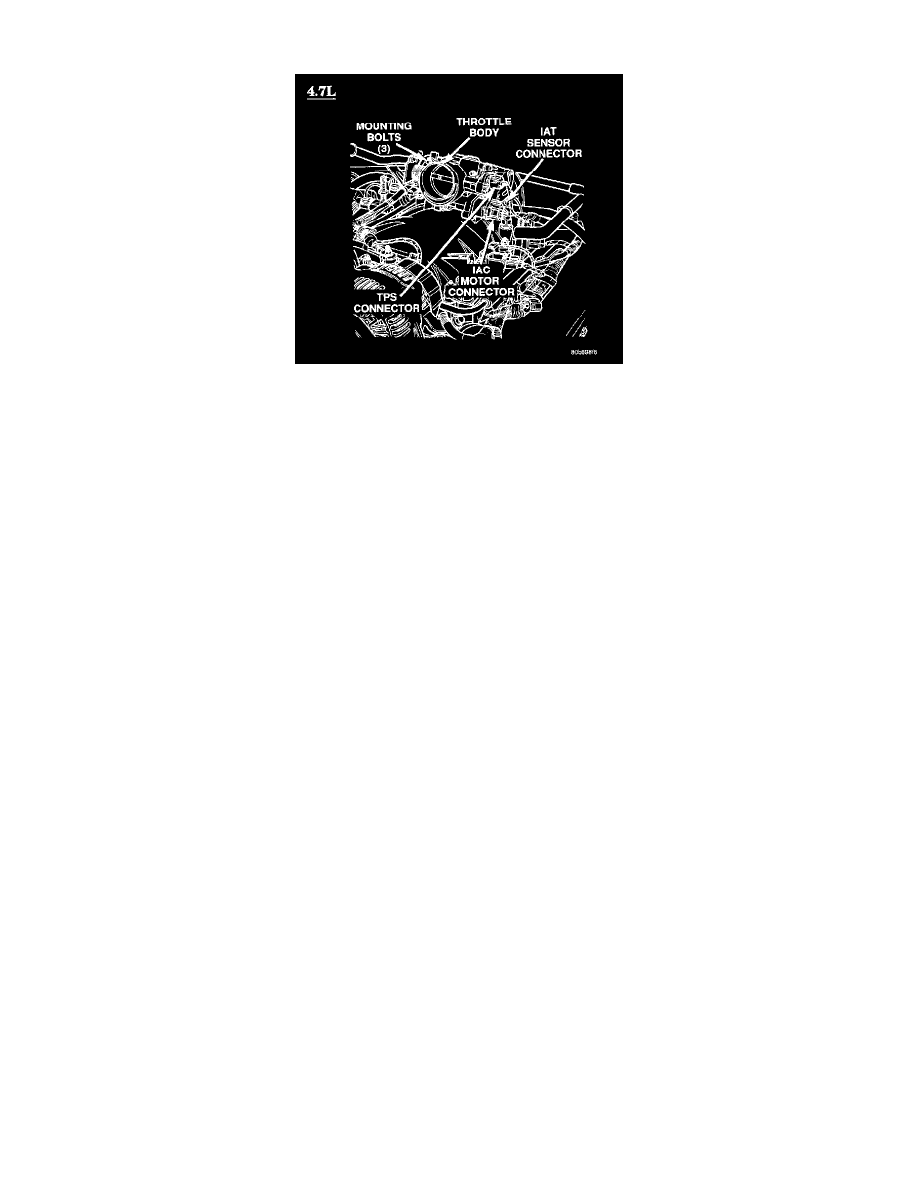

Throttle Position Sensor: Component Locations

4.7L

The 3-wire Throttle Position Sensor (TPS) is mounted on the throttle body and is connected to the throttle blade.
