Grand Cherokee 4WD V8-4.7L (2003)
Powertrain Management
Fuel Delivery and Air Induction
Idle Air Control (IAC) Motor <--> [Idle Speed/Throttle Actuator - Electronic] / Specifications
Page 3600
Page 1

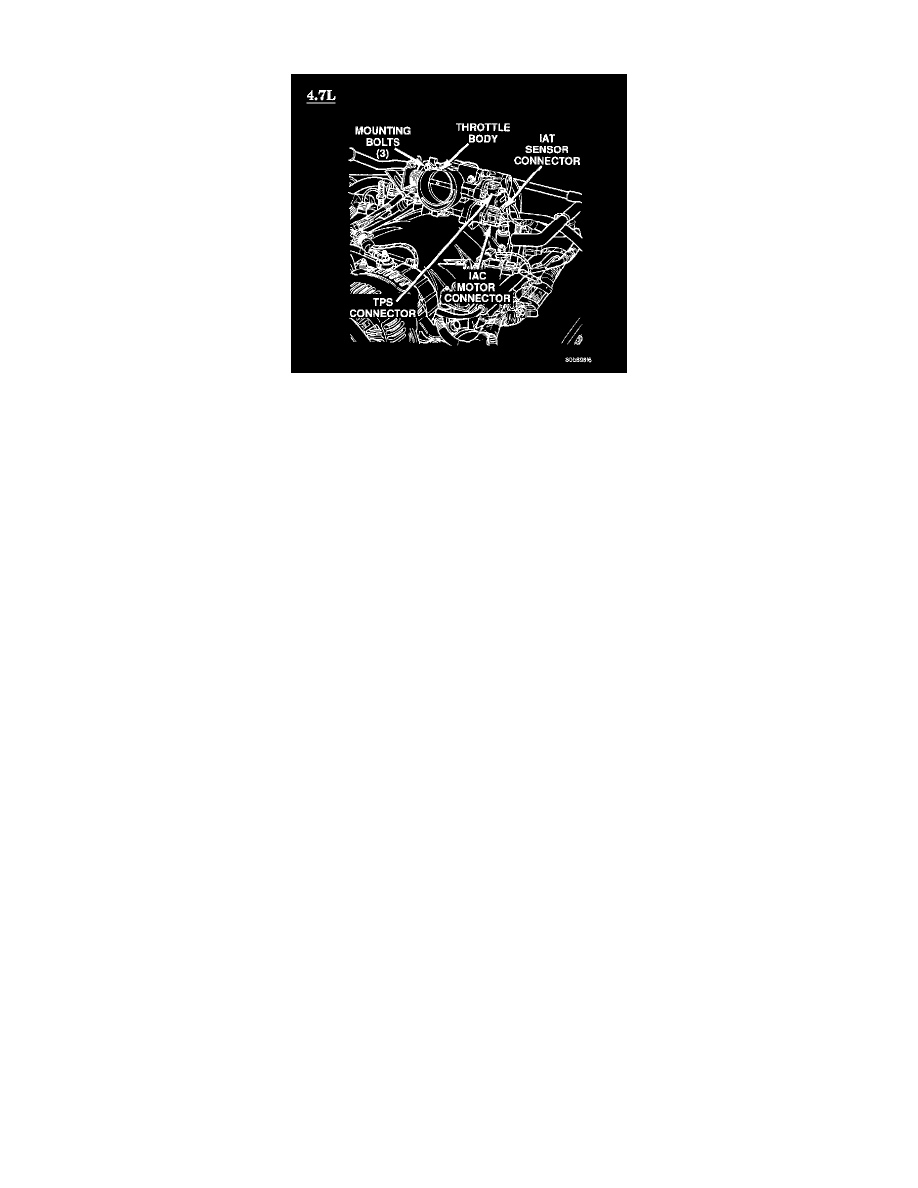

Idle Air Control (IAC) Motor: Locations
4.7L
The IAC motor is located on the throttle body.
