Crankshaft Position Sensor: Component Locations

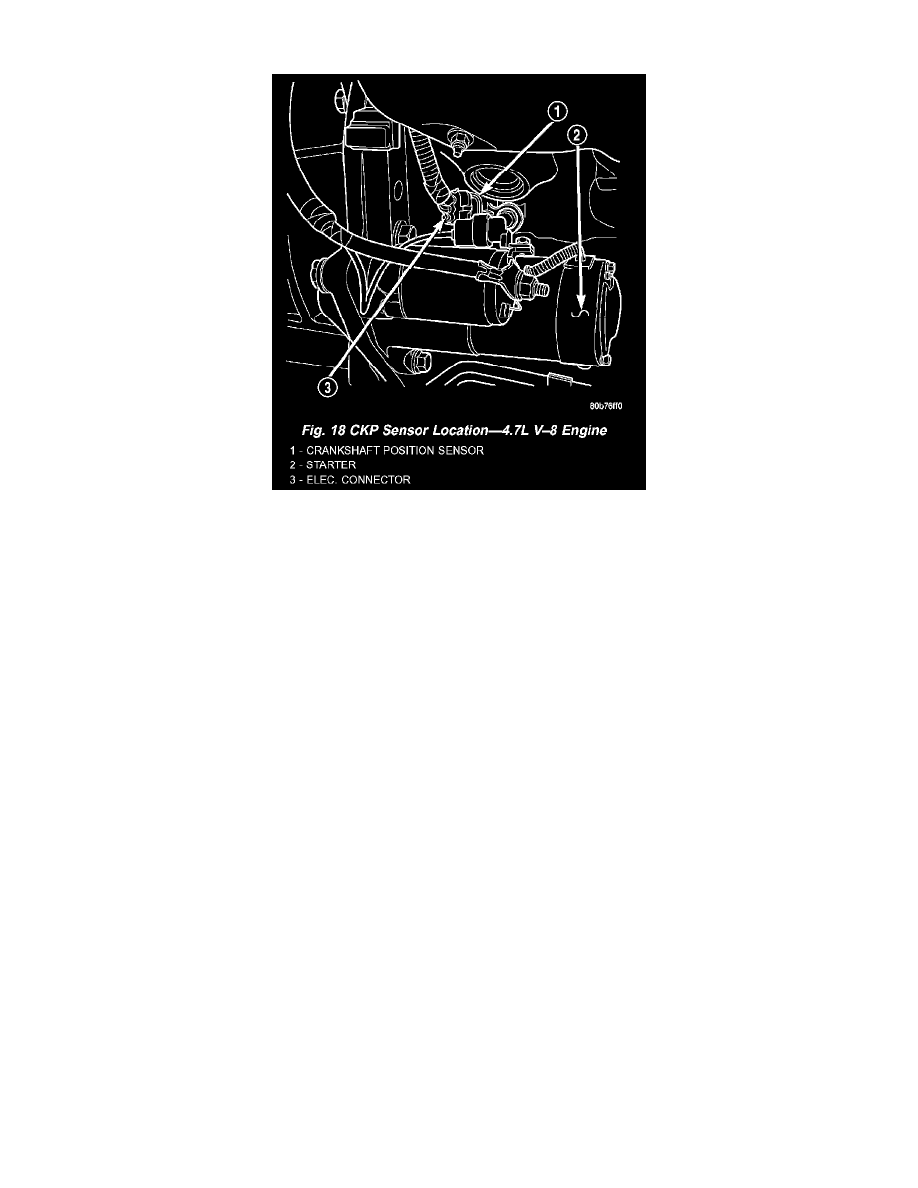

Fig. 18 CKP Sensor Location - 4.7L V-8 Engine

The Crankshaft Position Sensor (CKP) is mounted into the engine block above the starter motor.
