Grand Cherokee 4WD V8-4.7L (2003)
Pedal Positioning Switch: Service and Repair

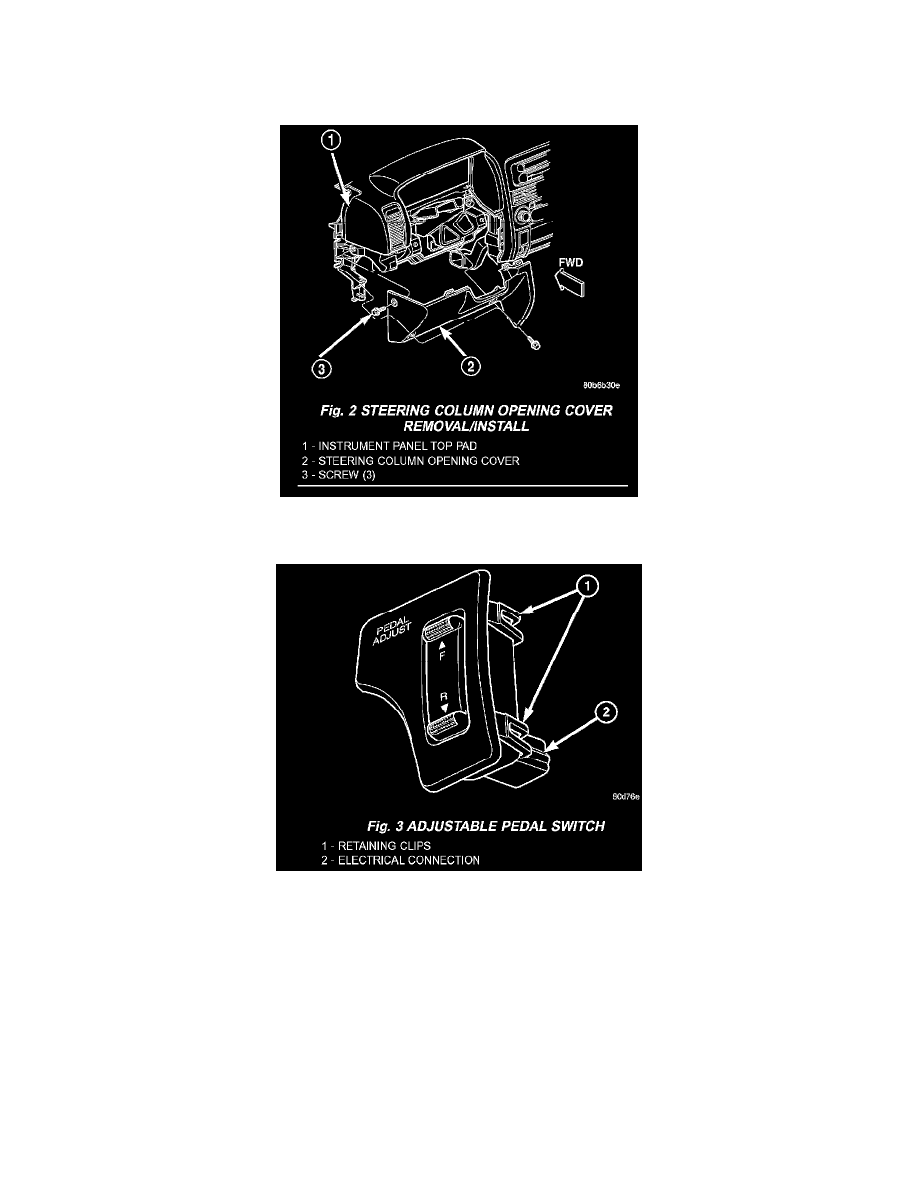

ADJUSTABLE PEDAL SWITCH
REMOVAL
1. Remove the steering column opening cover.
2. Disconnect the electrical connector from the adjustable pedal switch.
3. Remove the switch from the steering column opening cover by squeezing the retaining clips together and pushing the switch outwards.
INSTALLATION
1. Install the switch to the steering column opening cover by pushing the switch inwards seating the retaining clips to the steering column opening
cover.
2. Reconnect the electrical connector to the adjustable pedal switch.
3. Install the steering column opening cover.
