Grand Cherokee 4WD V8-4.7L (2003)
Power Seat Switch: Testing and Inspection
Passenger Seat Switch Test
For complete circuit diagrams, refer to Wiring Diagrams.
1. Disconnect and isolate the battery negative cable.
2. Remove the power seat switch from the outboard seat cushion side shield. Refer to the procedure in this section.

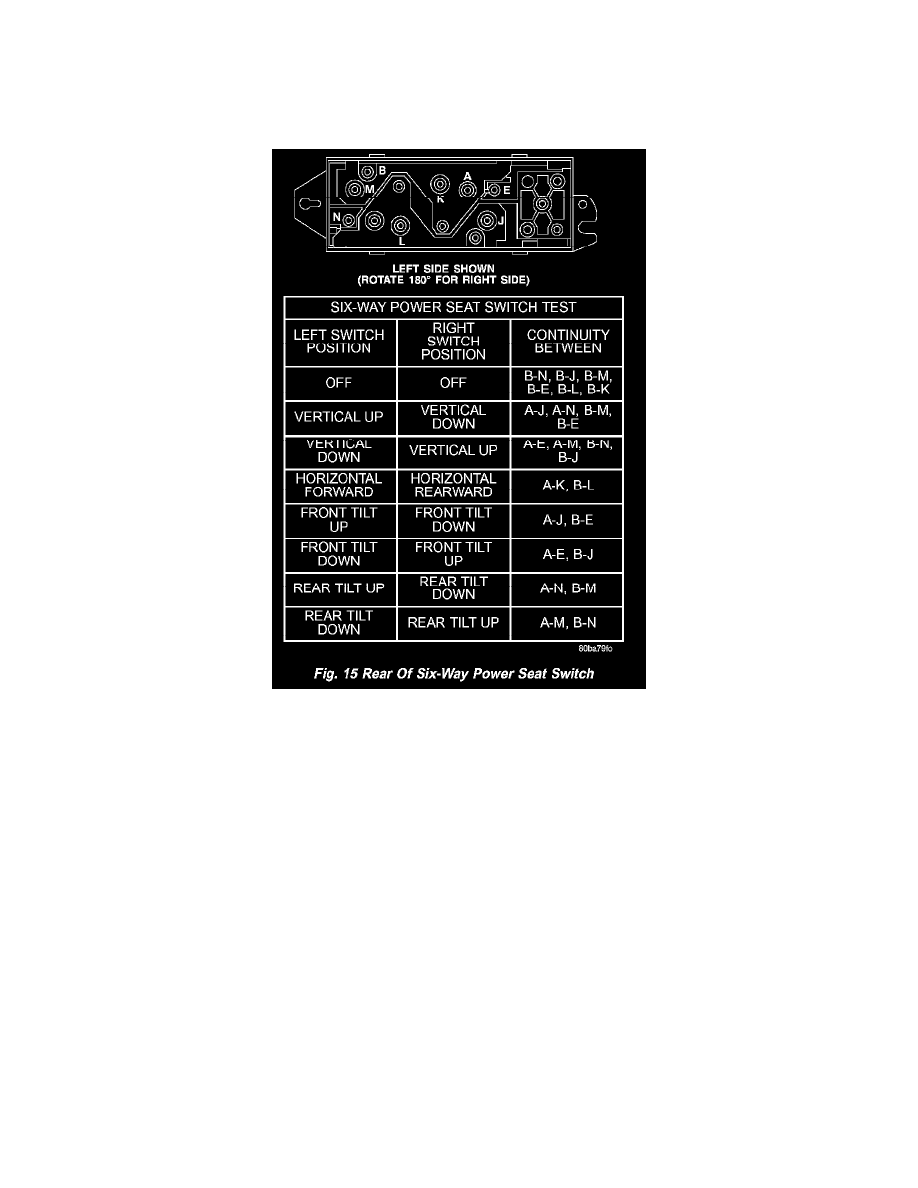

Fig.15 Rear Of Six-Way Power Seat Switch
