Grand Cherokee 4WD V8-4.7L (2003)
Auxiliary Power Outlet: Service and Repair
Cigar Lighter Outlet Door Spring Replacement
CIGAR LIGHTER OUTLET DOOR SPRING
REMOVAL
1. Disconnect and isolate the negative battery cable.
2. Remove the instrument panel center lower bezel from the instrument panel.

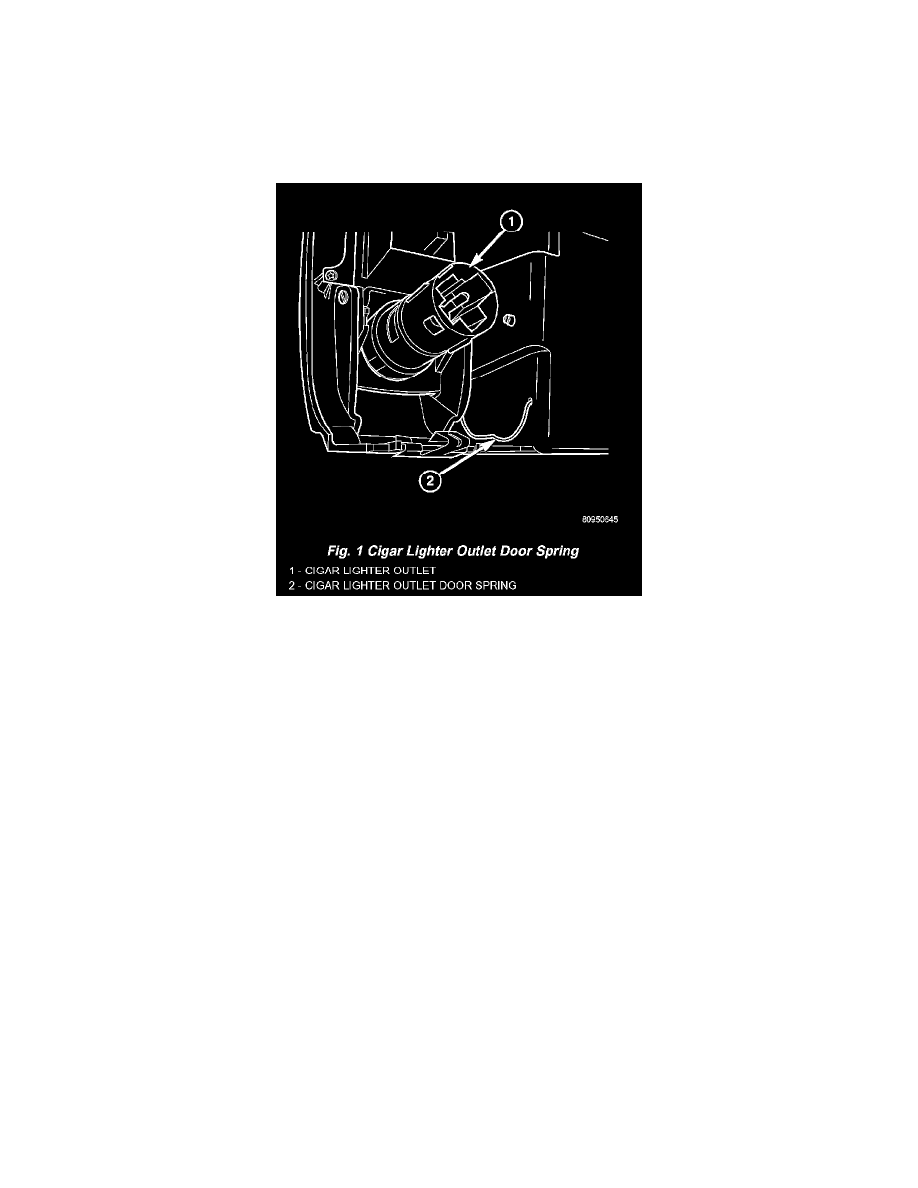

Fig.1 Cigar Lighter Outlet Door Spring
3. Remove the cigar lighter outlet door spring from its locating holes (Fig. 1).
INSTALLATION
1. Install the cigar outlet door spring in its locating holes.
2. Install the instrument panel center lower bezel on the instrument panel.
3. Connect the negative battery cable.
