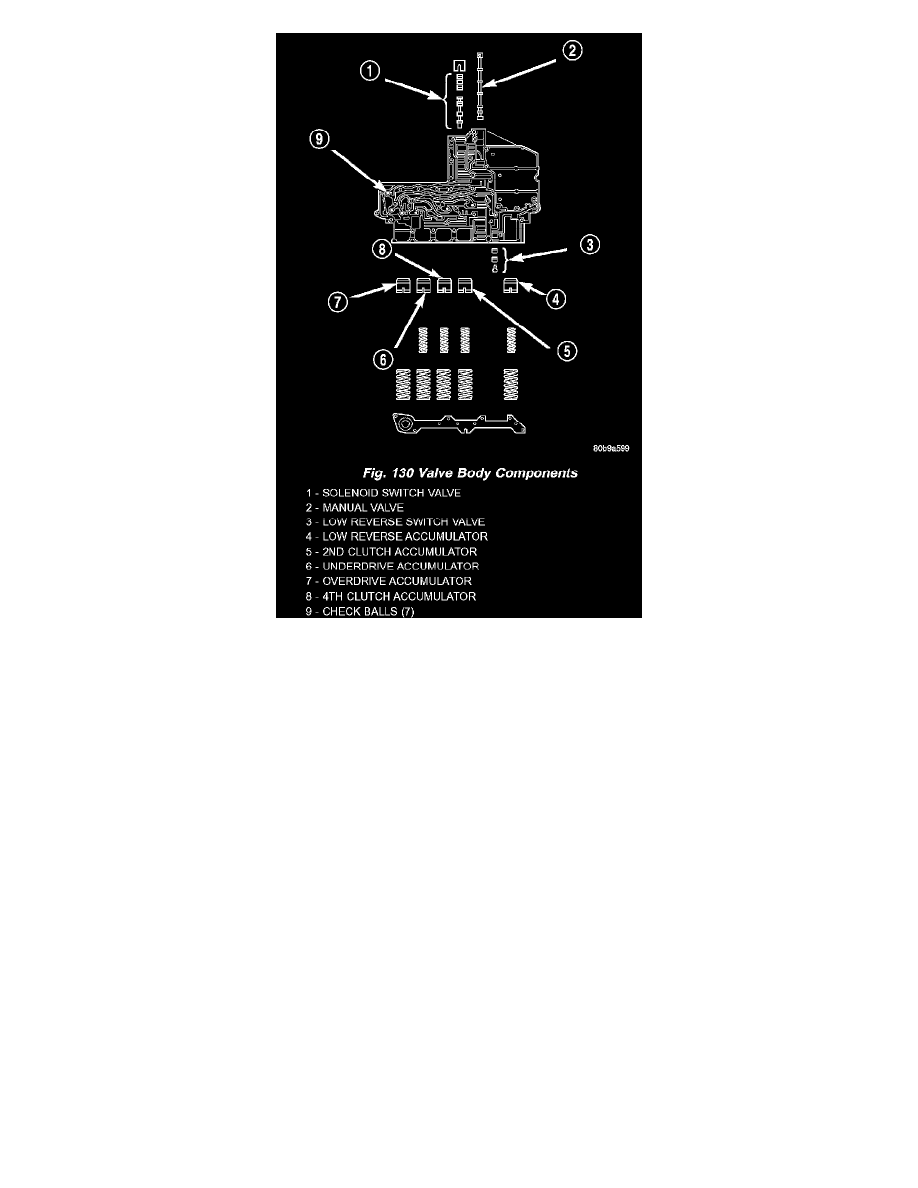

13. Remove the retainers securing the solenoid switch valve, manual valve, and the low/reverse switch valve into the valve body and remove the

associated valve and spring. Tag each valve and spring combination with location information to aid in assembly. (Fig. 130)

CLEANING
