Grand Cherokee 4WD V8-4.7L (2003)
Wiper Control Module: Service and Repair
Rear Wiper Module Replacement
REAR WIPER MODULE
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the rear wiper arm from the rear wiper motor output shaft.

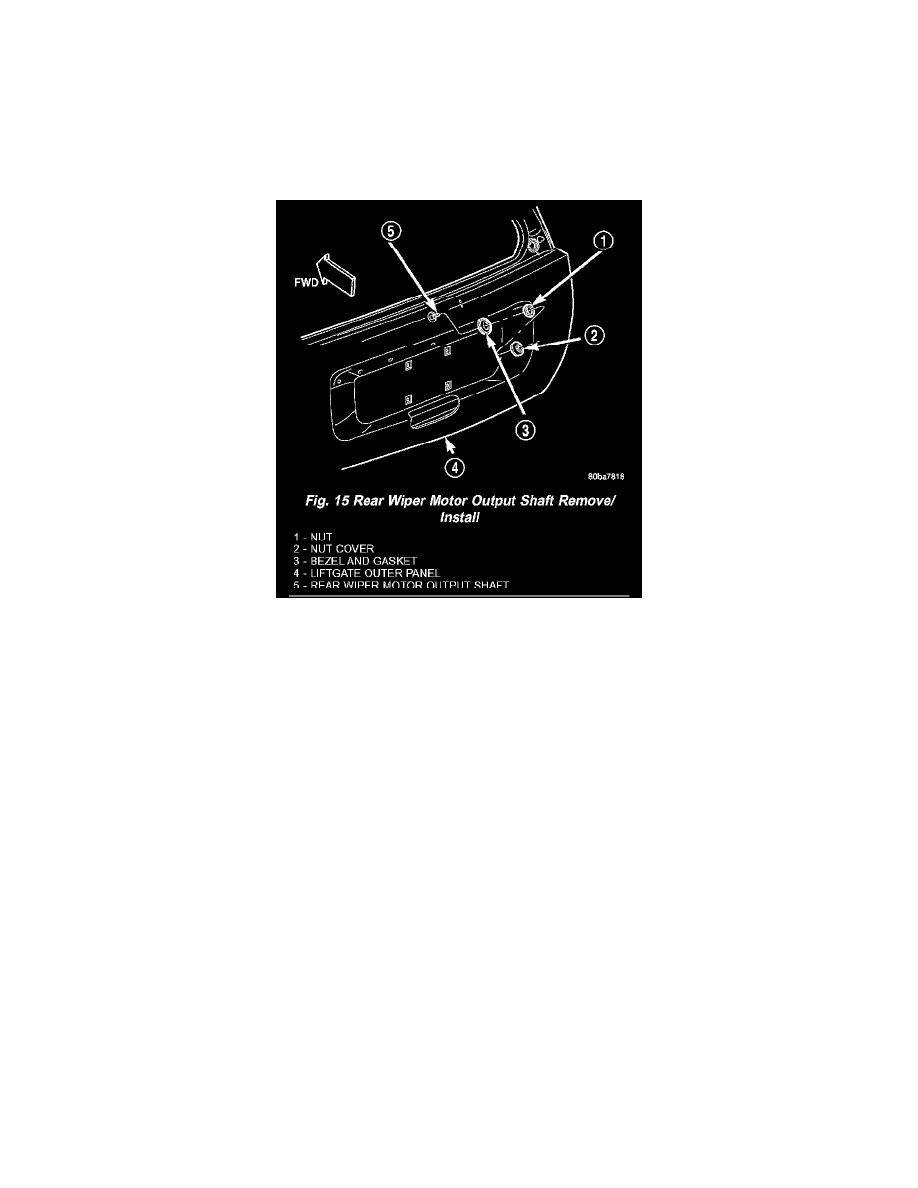

Fig. 15 Rear Wiper Motor Output Shaft Remove/Install
3. Using door trim panel removal tool, gently pry at the base of the nut cover where it meets the wiper motor output shaft bezel and gasket on the
outer lift-gate panel to unsnap it from the bezel. Be certain to take proper precautions to protect the outer liftgate panel and its paint finish from
damage during this procedure.
4. Remove the nut that secures the rear wiper motor output shaft to the outer liftgate panel.
5. Remove the bezel and gasket from the rear wiper motor output shaft.
6. Remove the trim panel from the liftgate inner panel.
