Grand Cherokee 4WD V8-4.7L (2003)
Windshield Washer Pump: Description and Operation

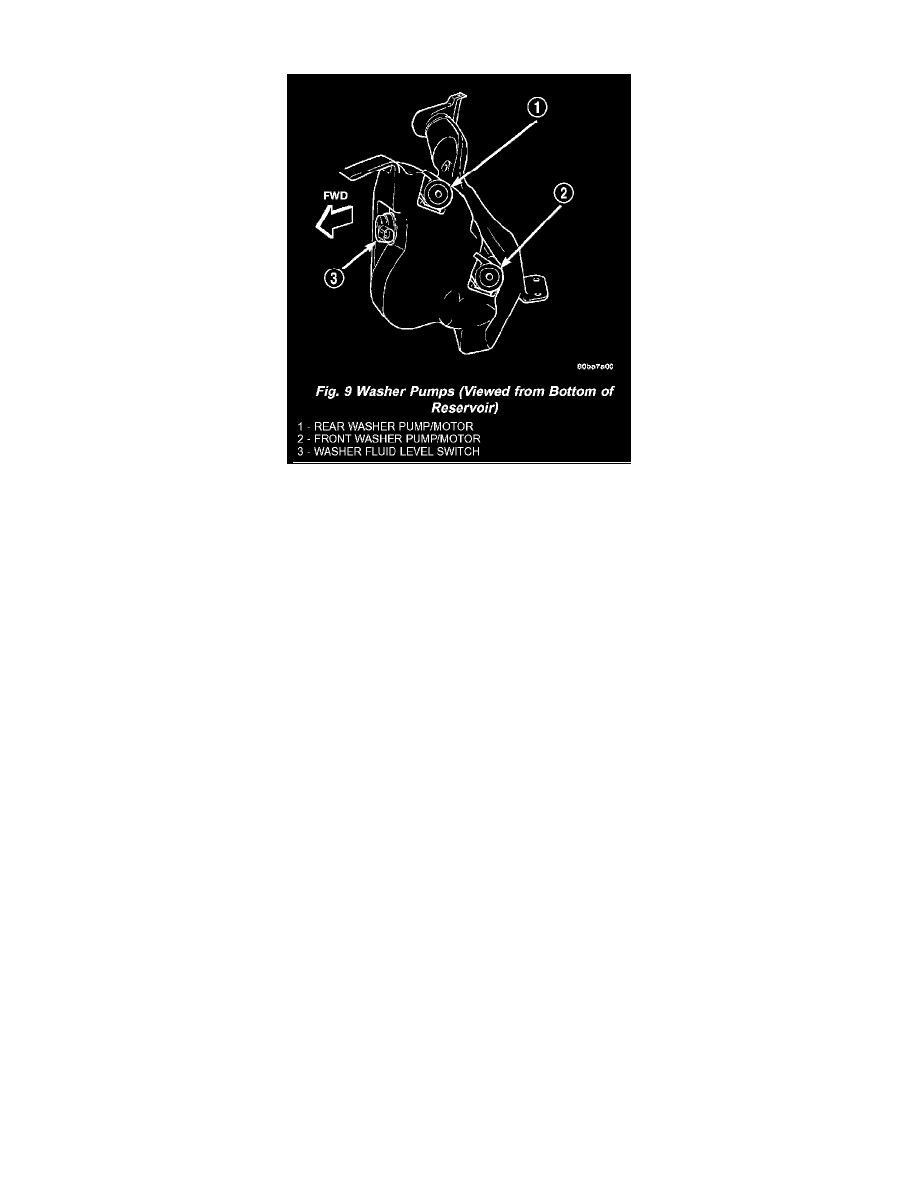

Fig. 9 Washer Pumps (Viewed From Bottom Of Reservoir)
FRONT WASHER PUMP/MOTOR
The front washer pump/motor unit is located on the outboard side and near the front of the washer reservoir, between the left front inner and outer
fender panels. A small permanently lubricated and sealed electric motor is coupled to the rotor-type washer pump. A seal flange with a large barbed
inlet nipple on the pump housing passes through a rubber grommet seal installed in one of two dedicated mounting holes near the bottom of the washer
reservoir. The front washer pump/motor unit is always mounted in the lower pump mounting hole of the reservoir.
A smaller barbed outlet nipple on the pump housing connects the unit to the front washer hose. The washer pump/motor unit is retained on the
reservoir by the interference fit between the barbed pump inlet nipple and the grommet seal, which is a light press fit. An integral electrical connector
receptacle on the top of the motor housing connects the unit to the vehicle electrical system through a dedicated take out and connector of the left
headlamp and dash wire harness. The front washer pump/motor unit cannot be repaired. If faulty or damaged, the entire washer pump/motor unit must
be replaced.
The front washer pump/motor unit is connected to the vehicle electrical system through a single take out and two-cavity connector of the left headlamp
and dash wire harness. The washer pump/motor is grounded at all times through another take out of the left headlamp and dash wire harness with a
single eyelet terminal connector that is secured under a ground screw to the top of the left inner fender shield in the engine compartment. The front
washer pump/ motor receives battery current on a fused ignition switch output (run-acc) circuit through the closed contacts of the momentary front
washer switch circuitry within the right multi-function switch only when the switch control stalk is pulled towards the steering wheel.
Washer fluid is gravity-fed from the washer reservoir to the inlet side of the washer pump housing.
When the pump motor is energized, the rotor-type pump impeller rotates. When the pump impeller rotates, pressurized washer fluid is forced out of
the pump outlet nipple, through the front washer plumbing and the front washer nozzles onto the windshield glass. The front washer pump/motor unit
may be diagnosed using conventional diagnostic tools and methods.
