Liberty 2WD L4-2.4L VIN 1 (2005)
Power Seat Switch: Description and Operation
Right

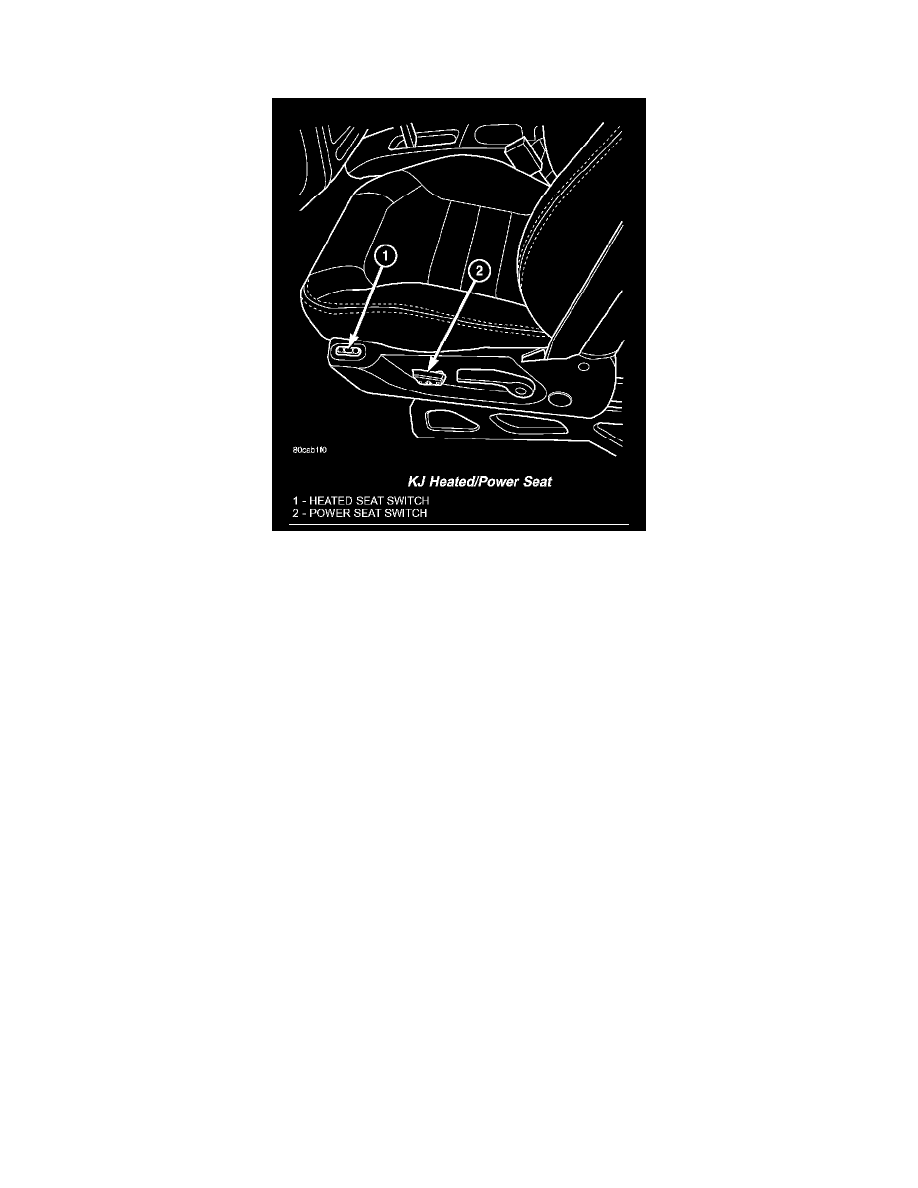

Vehicles equipped with the power seat option utilize a six-way power seat switch. This six-way power seat switch features one seat cushion shaped knob,
visible on the outboard seat cushion side shield.
The switch is secured to the back of the seat cushion side shield with two screws. However, the control knob must be removed before the seat switch can
be removed from the side shield.
The individual switches internal to the power seat switch cannot be repaired. If one switch is damaged or faulty, the entire power seat switch unit must be
replaced.
The power seat tracks can be adjusted in six different ways using the power seat switches. See the owner's manual in the vehicle glove box for more
information on the power seat switch functions and the seat adjusting procedures.
When a power seat switch control knob or knobs are actuated, a battery feed and a ground path are applied through the switch contacts to the power seat
track adjuster motor. The selected adjuster motor operates to move the seat track through its drive unit in the selected direction until the switch is
released, or until the travel limit of the seat track is reached. When the switch is moved in the opposite direction, the battery feed and ground path to the
motor are reversed through the switch contacts. This causes the adjuster motor to run in the opposite direction.
No power seat switch should be held applied in any direction after the seat track has reached its travel limit. The power seat adjuster motors each contain
a self-resetting circuit breaker to protect them from overload. However, consecutive or frequent resetting of the circuit breaker must not be allowed to
continue, or the motor may be damaged.
