Alignment: Specifications
Wheel Alignment

WHEEL ALIGNMENT

NOTE: All specifications are given in degrees.

NOTE: All wheel alignments are to be set with the vehicle at curb height. See: Service and Repair/Wheel Alignment Procedures

NOTE: Each of the following tables refers to a vehicle equipped with a specific size OEM tire/wheel (except Export).

ALL WITH 16 INCH WHEELS

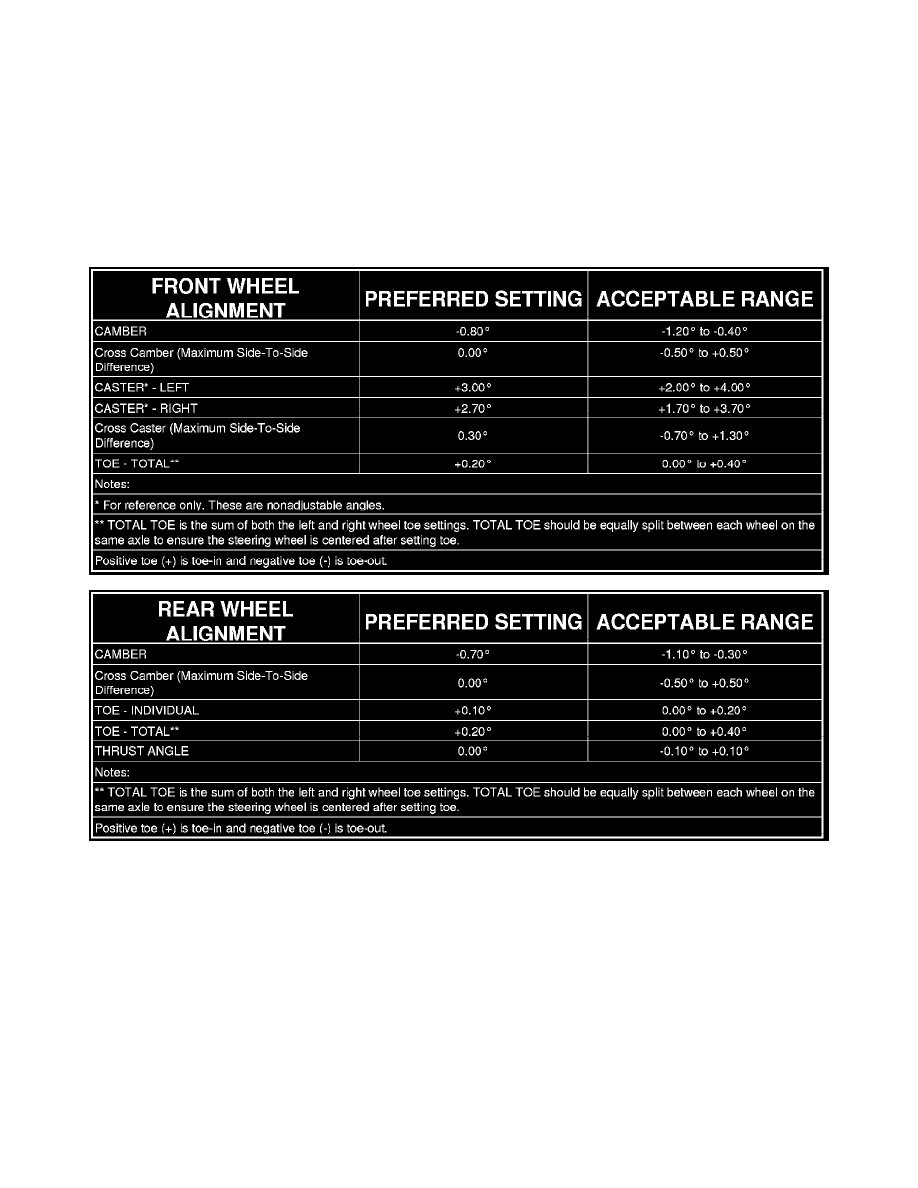

ALL P215/60R17 AND P215/65R17AT with OFF-ROAD GROUP (AWL)
