Patriot 4WD L4-2.4L (2009)
7. Install the B+ terminal nut and wire and tighten to GAS AND DIESEL 10 Nm (88.5 in. lbs.).
8. Plug in the field circuit to the generator.

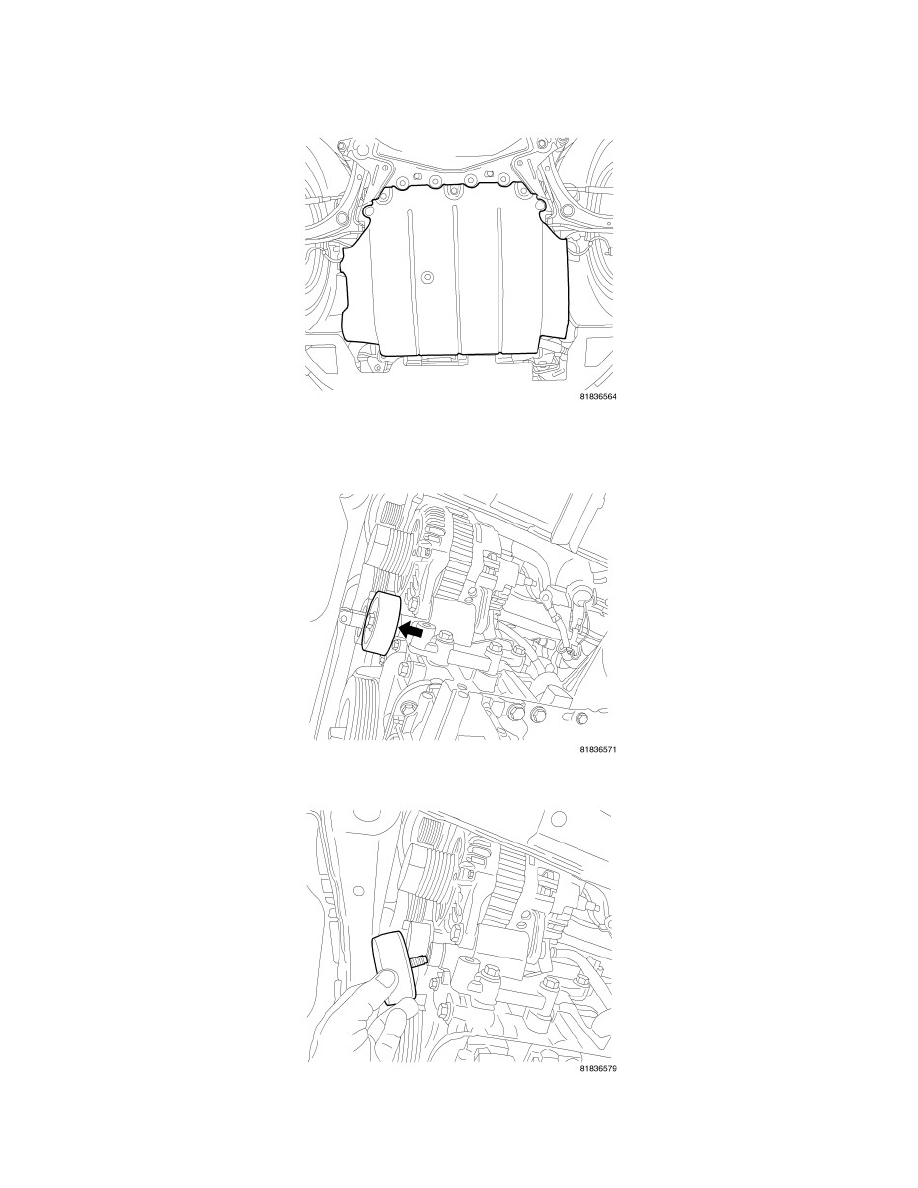

9. Install idler pulley and tighten bolt.
10. Install the accessory drive belt.
11. Install splash shield.
