Patriot 4WD L4-2.4L (2009)

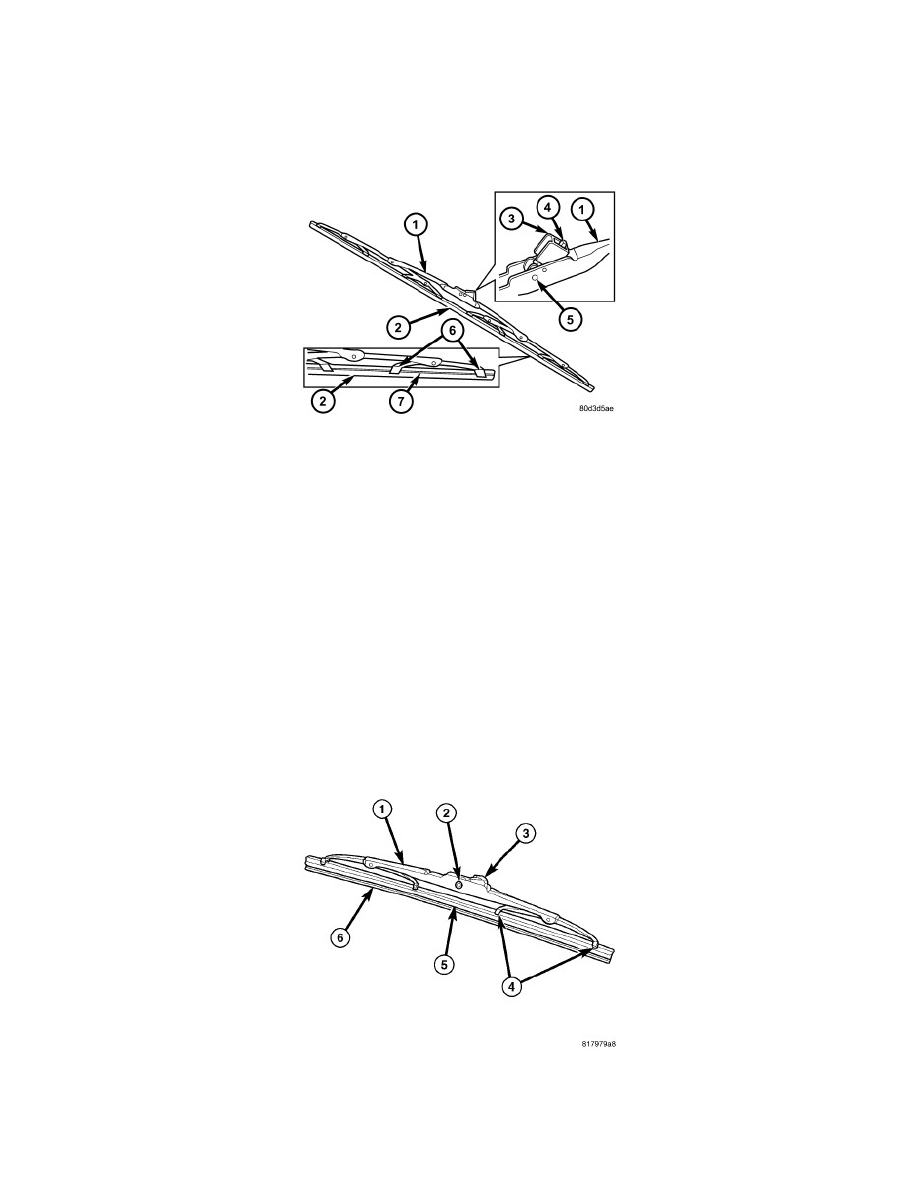

included in this unit is the latching, molded plastic pivot block (3) that secures the superstructure to the wiper arm. All of the metal components of
the wiper blade have a satin black finish applied.
-
Element (6) - The wiper element or squeegee is the resilient rubber member of the wiper blade that contacts the glass.
-
Flexor (5) - The flexor is a rigid metal component running along the length of each side of the wiper element where it is gripped by the claws of
the superstructure.
All vehicles have a single 27.90 centimeter (10.98 inch) long rear wiper blade with a non-replaceable rubber element (squeegee). The wiper blade cannot
be adjusted or repaired. If ineffective, worn or damaged the entire wiper blade unit must be replaced.
