Amanti V6-3.5L (2006)
Caster: 3°1 5' ± 1 °
NOTE:
^
The front suspension assembly must be free of worn, loose or damaged parts prior to measuring front wheel alignment.
^

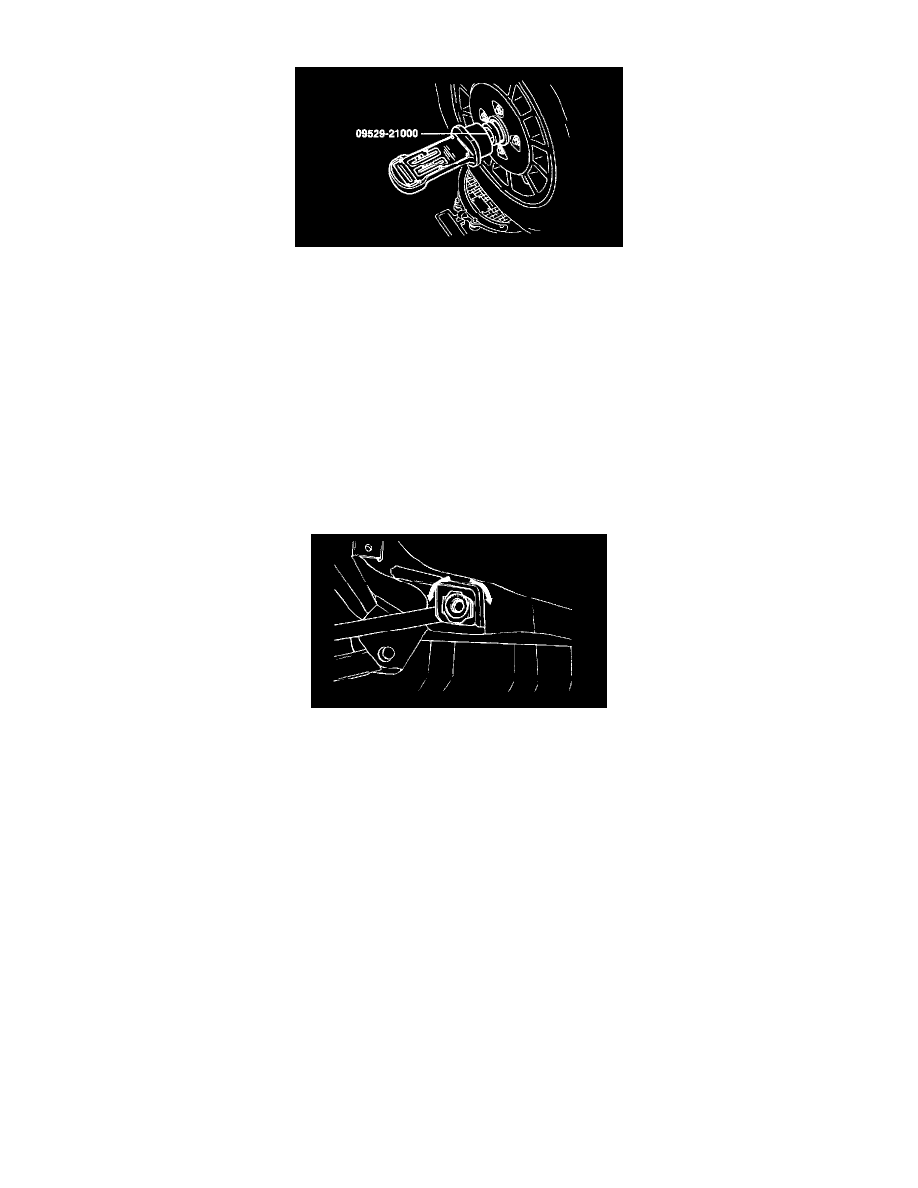

Measure wheel alignment by using the special tool (09529-21000).
^
Camber and caster are pre-set at the factory and cannot be adjusted.
^
If camber and caster are not within specifications, replace bent or damaged parts.
REAR
TOE-IN
Standard value: 2 ± 2mm (0.08 ± 0.08 inch)
NOTE:
^
The assist arm mounting cam bolt (crossmember side) should be turned an equal amount on both sides when adjusting.
Inside direction of the vehicle: toe-in
Outside direction of the vehicle: toe-out
^
The assist arm mounting cam bolt should be adjusted to a maximum of 900 left or right from the center position.
^
The scale has gradations of approximately 2.4 mm (14')
CAMBER
Standard value: -30' ± 30'
NOTE:
^
The rear suspension assembly must be free of worn, loose or damaged parts prior to measuring rear wheel alignment.
^
Camber is pre-set at the factory and cannot be adjusted.
^
If camber is not within the specifications, replace bent or damaged parts.
