Engine - Timing Belt and Counter Balance Shaft Belt|Page 1050 > < Engine - Timing Belt and Counter Balance Shaft Belt|Page 1048

Optima L4-2.4L (2001)

Page 1
background image

Timing Belt: Diagrams

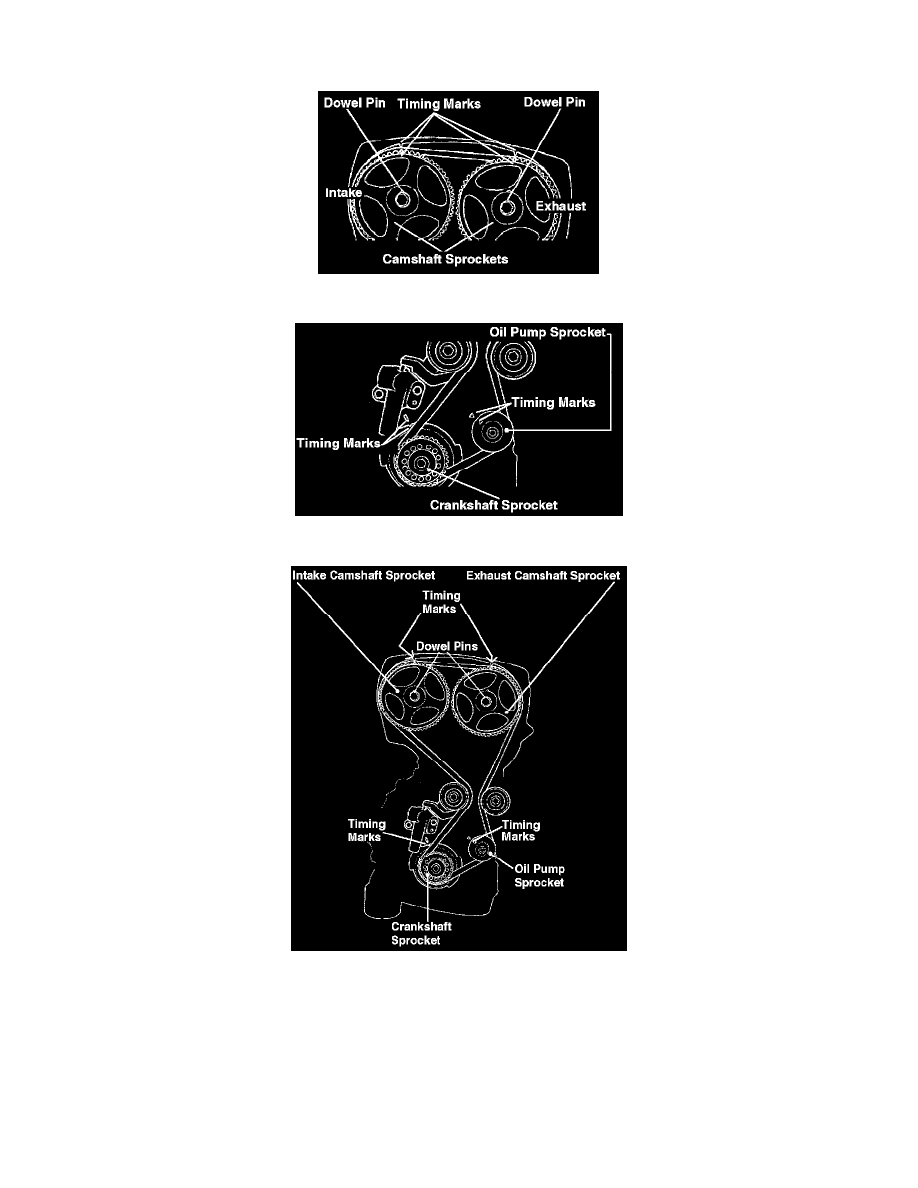

TIMING BELT ALIGNMENT MARKS



Camshaft Sprockets

Crankshaft and Oil Pump Sprockets



Full Belt Diagram
