Page 6
background image

2 of 2

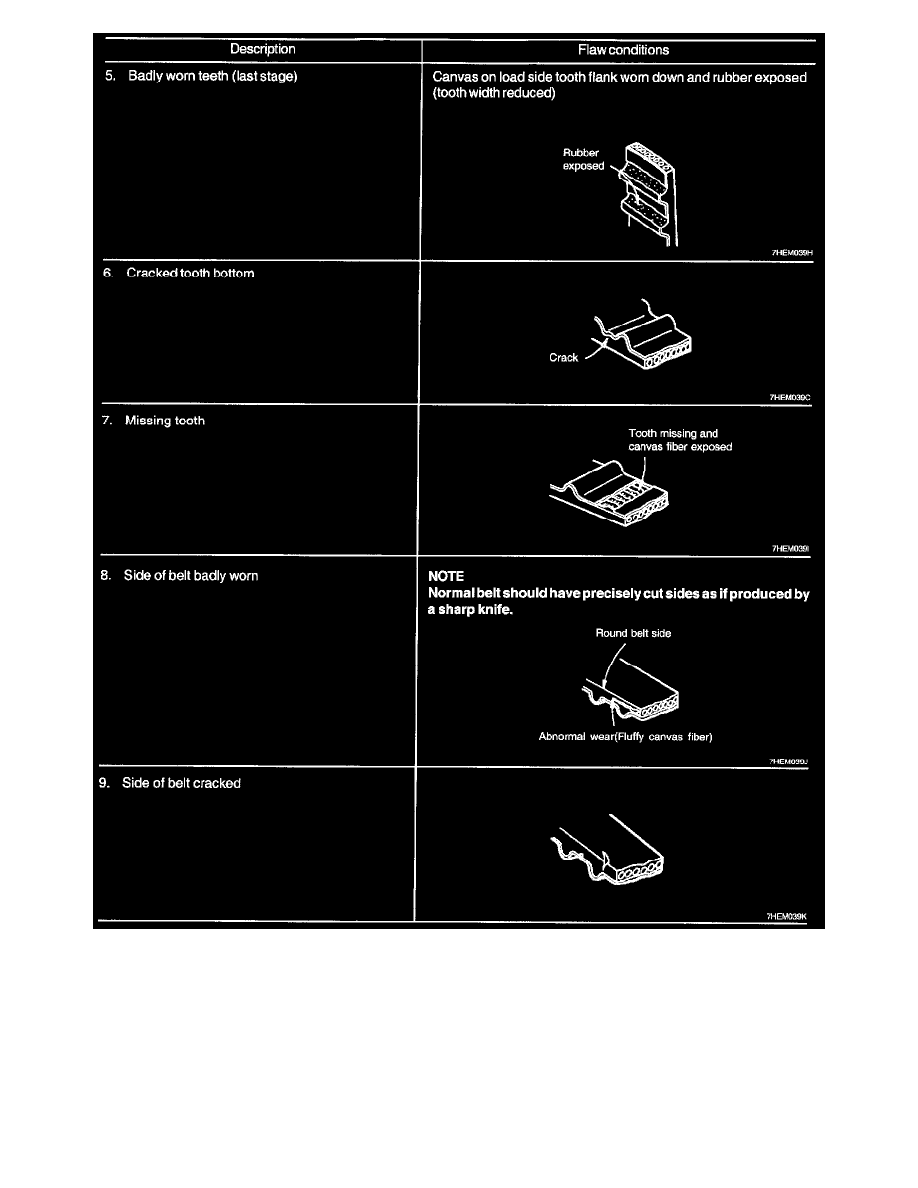

2. When the engine is overhauled or belt tension adjusted, check the belt in detail. If the flaws are evident, replace the belt with a new one.

INSTALLATION
