Optima V6-2.7L VIN 4 (2007)
Control Assembly: Service and Repair
Control Panel
REPLACEMENT
1. Disconnect the negative (-) battery terminal.

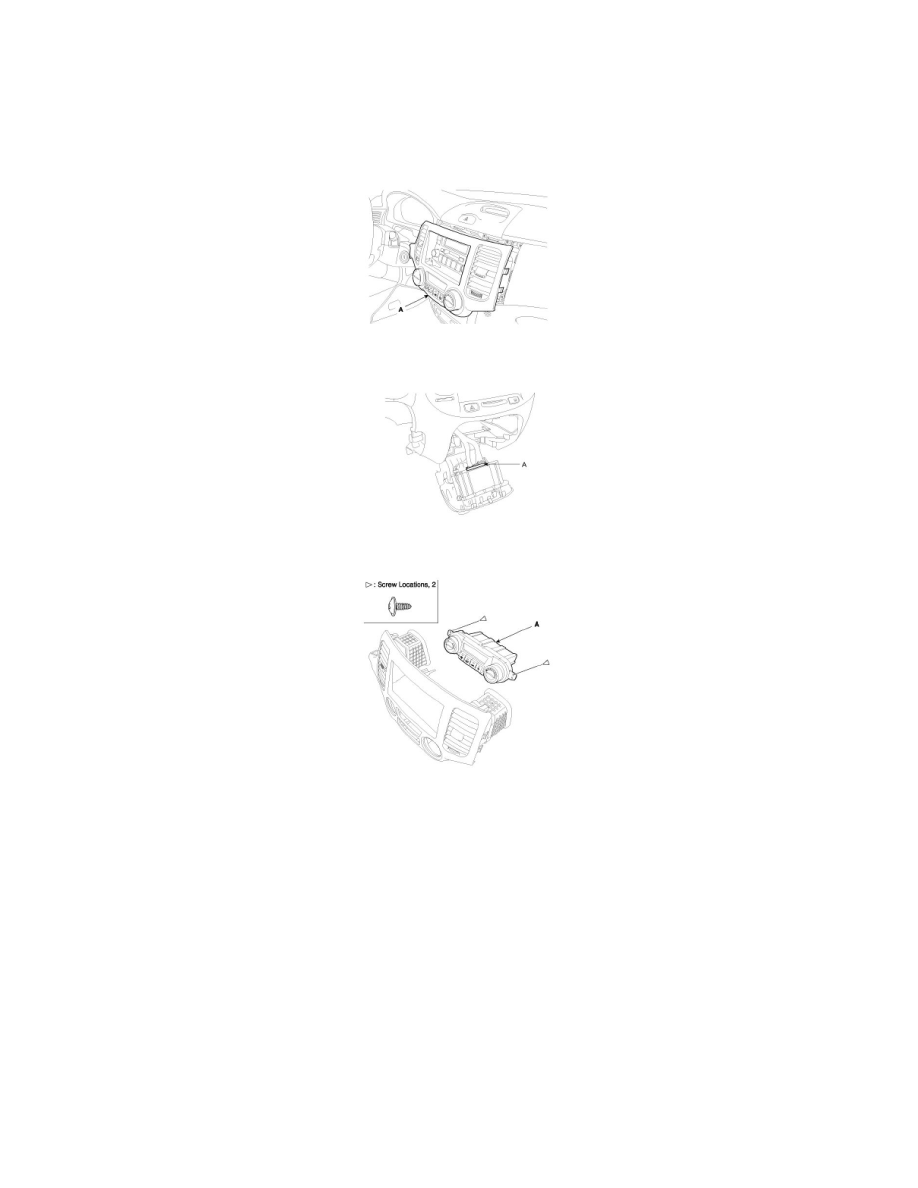

2. Remove the center facia lower panel (A) by pulling it using a screw driver (-).
3. Disconnect the connectors from the center facia.
4. Remove the heater & A/C controller (A) after loosening 4 screws.
5. Installation is the reverse order of removal.
