Sorento 2WD V6-3.3L (2008)

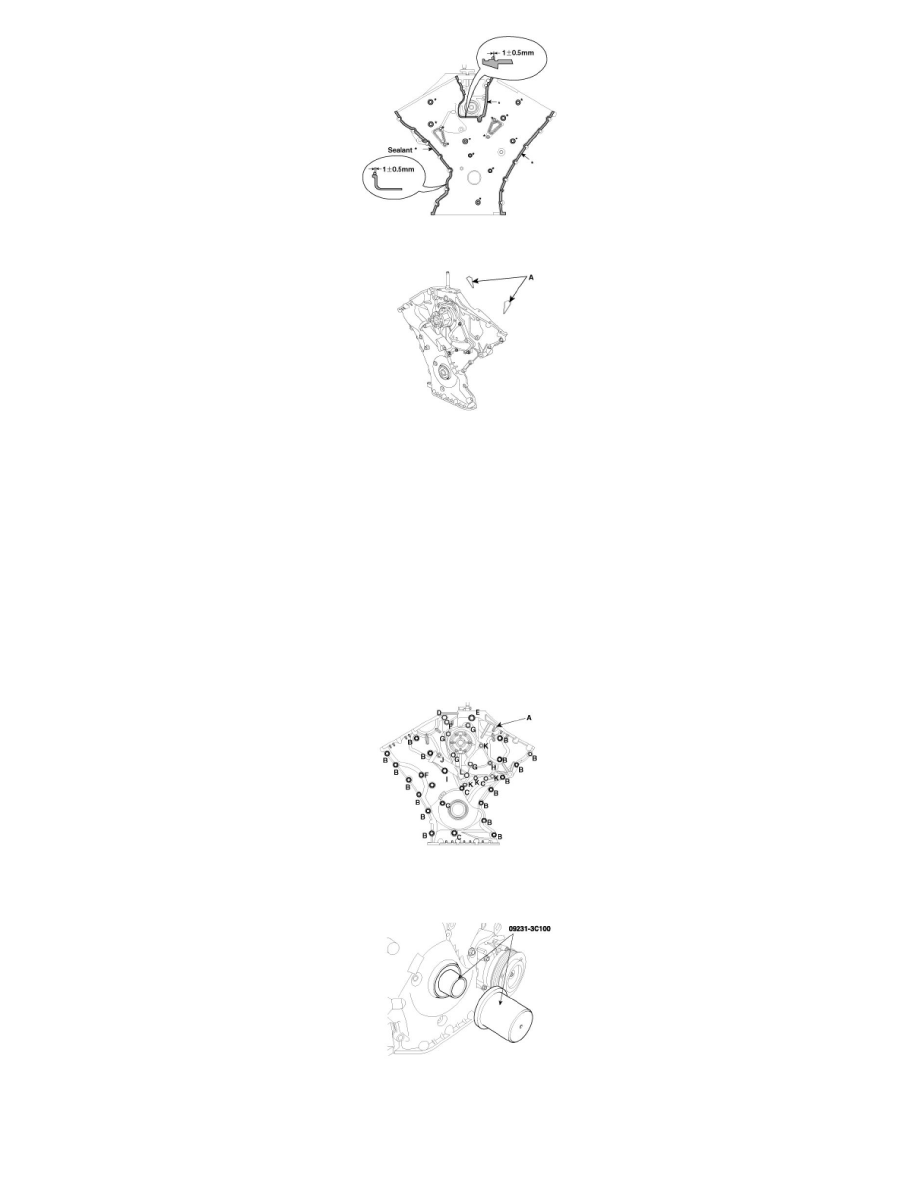

D. Install the new gasket(A) to the timing chain cover.
E. The dowel pins on the cylinder block and holes on the timing chain cover should be used as a reference in order to assemble the timing chain
cover to be in exact position.
Tightening torque
B(17): 18.62 - 21.56Nm(1.9 - 2.2kgf.m, 13.74 - 15.91lb-ft)
C(4): 9.80 - 11.76Nm(1.0 - 1.2kgf.m, 7.23 - 8.68lb-ft)
D(1): 58.80 - 68.80Nm(6.0 - 7.0kgf.m, 43.40 - 50.63lb-ft)
E(1): 58.80 - 68.80Nm(6.0 - 7.0kgf.m, 43.40 - 50.63lb-ft)
F(2): 24.50 - 26.46Nm(2.5 - 2.7kgf.m, 18.08 - 19.53lb-ft)
G(4): 21.56 - 23.52Nm(2.2 - 2.4kgf.m, 15.91 - 17.36lb-ft)
H(1): 9.80 - 11.76Nm(1.0 - 1.2kgf.m, 7.23 - 8.68lb-ft)
I(1): 9.80 - 11.76Nm(1.0 - 1.2kgf.m, 7.23 - 8.68lb-ft)
J(1): 9.80 - 11.76Nm(1.0 - 1.2kgf.m, 7.23 - 8.68lb-ft)
K(4): 9.80 - 11.76Nm(1.0 - 1.2kgf.m, 7.23 - 8.68lb-ft)
L(1): 21.56 - 26.46Nm(2.2 - 2.7kgf.m, 15.91 - 19.53lb-ft) - New bolt
F. The firing and/or blow out test should not be performed within 30 minutes after the timing chain cover was assembled.
22. Using SST(09231-3C100), install timing chain cover oil seal.
23. Install lower oil pan.
A. Using a gasket scraper, remove all the old packing material from the gasket surfaces.
B. Before assembling the oil pan, the liquid sealant TB1217H should be applied on oil pan.
The part must be assembled within 5 minutes after the sealant was applied.
