300Tdi Defender Manual Gearbox R380 Gearbox Page 286
37
MANUAL GEARBOX
2
REPAIR

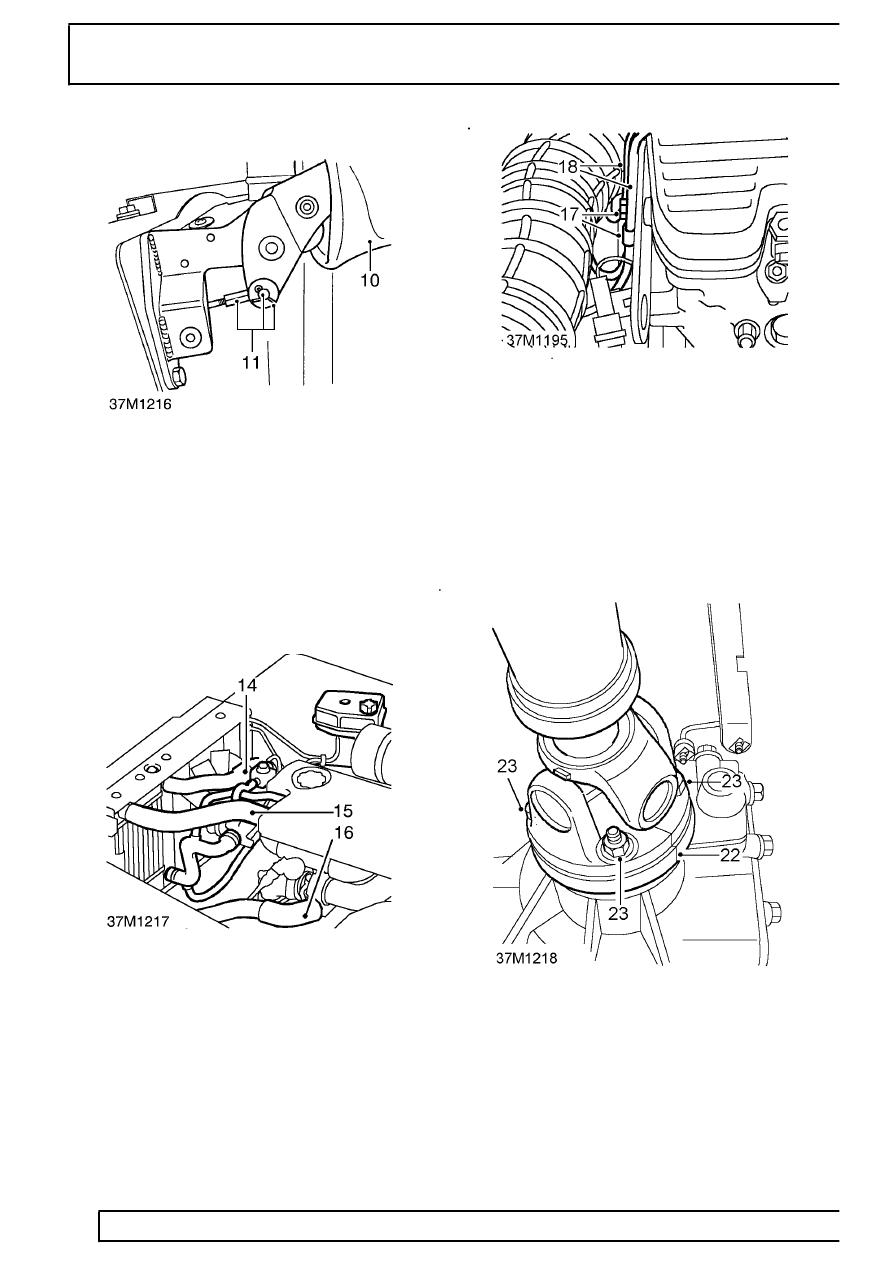

10. Remove 3 trim studs and lift up handbrake
gaiter.
11. Remove split pin, clevis pin, washer and
disconnect cable from handbrake lever. Ensure
handbrake is off.
12. Drain cooling system
See COOLING SYSTEM,
Adjustment, Drain and refill cooling system .
13. Remove viscous fan unit
See COOLING
SYSTEM, Repair, Viscous coupling and fan .
14. Slacken retaining clip and disconnect radiator
top hose at thermostat housing.
15. Slacken retaining clip and disconnect intake
hose at induction manifold. If EGR system is
fitted, slacken 2 retaining clips and disconnect
intake hose at intercooler.
16. Slacken retaining clip and disconnect hose at
turbocharger.
17. Remove bolt securing transmission breather
pipe clip to rear of engine.
18. Release breather pipes.
19. Release ties securing gearbox harness to
breather pipes.
20. Raise vehicle on ramp.
21. Position a suitable container under transmission
and drain main gearbox and transfer box
See
SECTION 10, Maintenance, Under vehicle
maintenance .
22. Mark front propeller shaft drive flange and
transfer box output flange for reassembly.
23. Remove 4 nuts and disconnect propeller shaft
from transfer box.
