WIPERS AND WASHERS
DESCRIPTION AND OPERATION
84-5

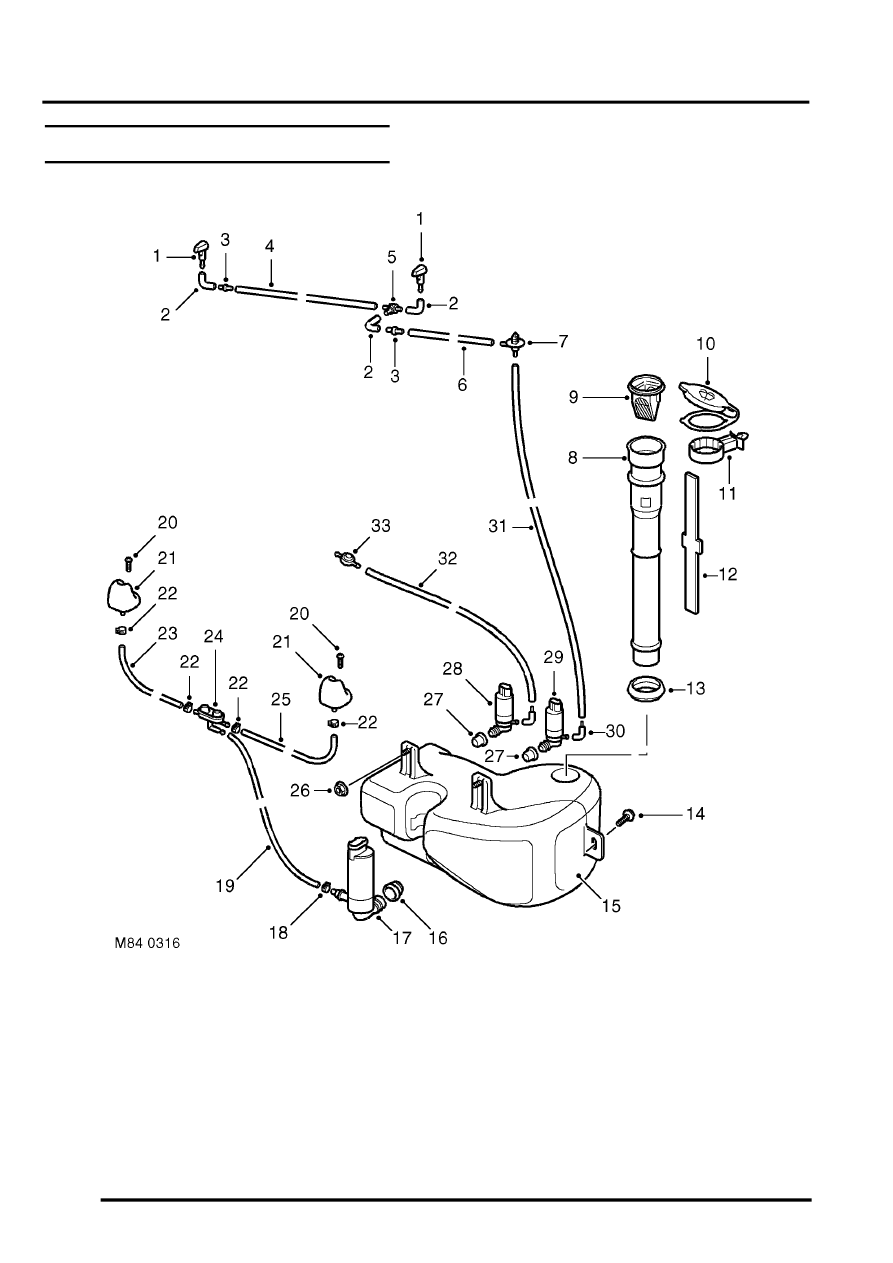

1 Windscreen washer jet 2 off
2 Elbow 3 off
3 In-line non-return valve
4 Tube
5 'T' connector
6 Tube
7 Connector
8 Filler neck tube
9 Filter
10 Cap
11 Bracket
12 Level float
13 Filler neck seal
14 Bolt
15 Reservoir
16 Pump sealing grommet (if fitted)
17 Powerwash pump (if fitted)
18 Clip
19 Tube
20 Screw 2 off
21 Powerwash jet 2 off
22 Clip 4 off
23 Tube
24 'T' connector
25 Tube
26 Nut 2 off
27 Pump sealing grommet 2 off
28 Rear washer pump
29 Front windscreen washer pump
30 Elbow 2 off
31 Tube - front windscreen
32 Tube - rear tail door window
33 Non-return valve
