L322 Range Rover System Description and Operation
FINAL DRIVE
51-8
DESCRIPTION AND OPERATION

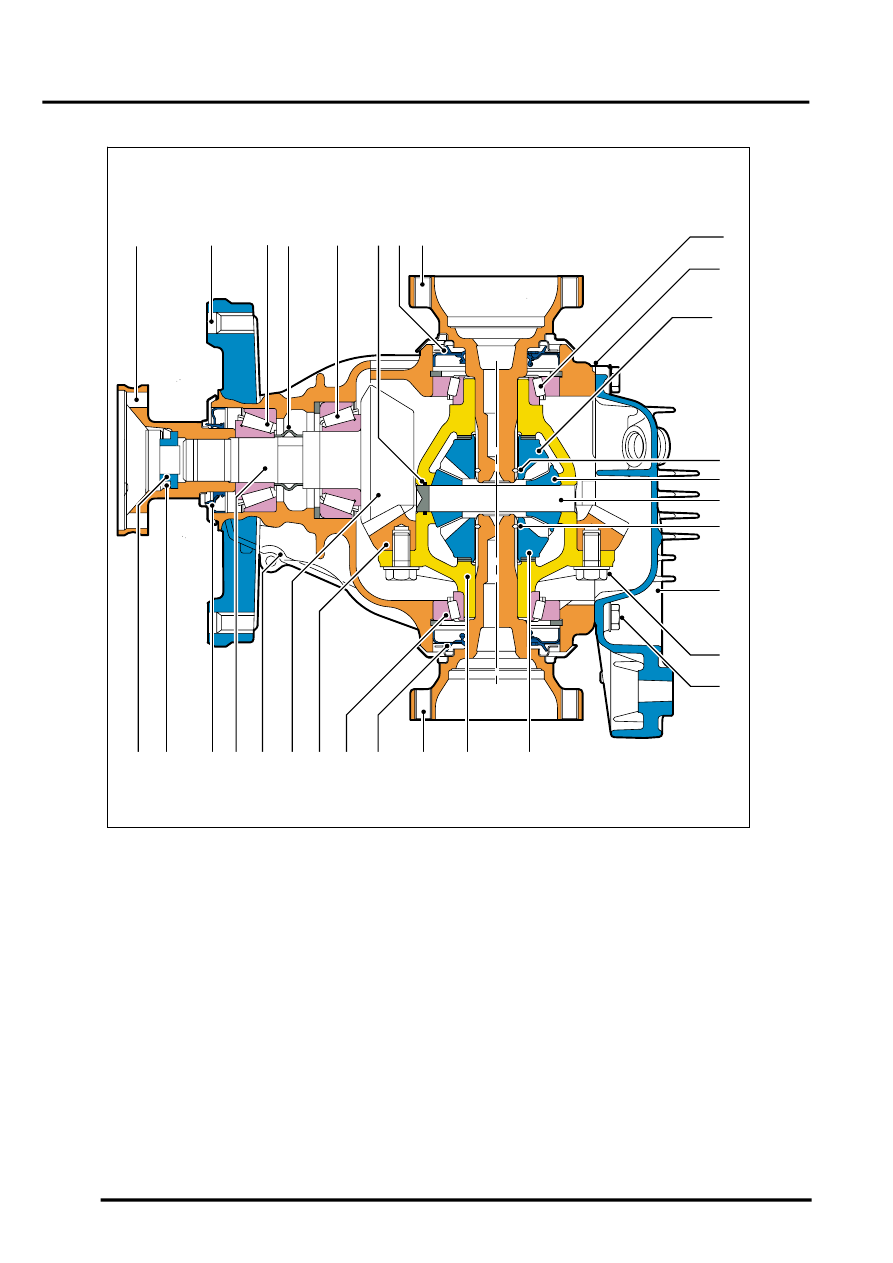

Rear Differential – Sectional View
1 Input flange
2 Bush mounting holes
3 Taper roller bearing
4 Collapsable spacer
5 Taper roller bearing
6 Snap ring
7 Oil seal
8 RH output flange
9 Taper roller bearing
10 Gasket
11 Sun wheel (RH drive shaft output)
12 Snap ring
13 Planet gear (2 off)
14 Shaft
15 Snap ring
16 Rear cover
17 Crown wheel gear bolt (10 off)
18 Rear cover bolt (8 off)
19 Sun wheel (LH drive shaft output)
20 Carrier
21 LH output flange
22 Oil seal
23 Taper roller bearing
24 Crown wheel drive gear
25 Pinion gear
26 Pinion housing
27 Pinion shaft
28 Oil seal
29 Nut retainer
30 Flanged nut.
M51 0150
9
10
11
6
5
3 4
2
1
7 8
22
24
16
17
18
19
20
21
25
26
29
30
14
13
15
23
28
12
27
