L322 Range Rover System Description and Operation
LIGHTING
DESCRIPTION AND OPERATION 86-2-21

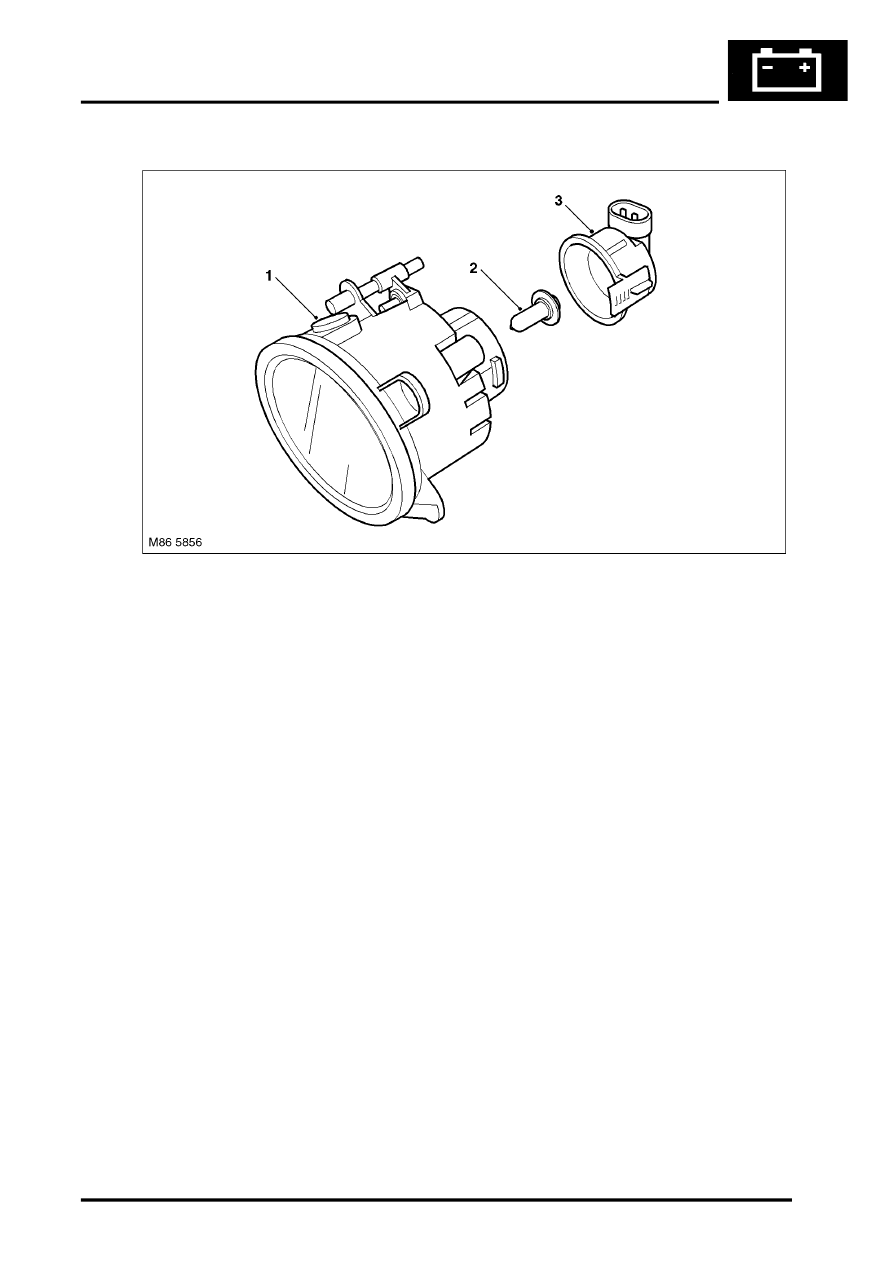

Front Fog Lamps
1 Lamp assembly
2 Halogen bulb
3 Bulb holder
The front fog lamps are located in the front bumper. Each lamp is secured to three lugs in the bumper and retained
with self tapping screws and fasteners. Each lamp has two adjusting screws which provide for the vertical and
horizontal alignment of the beam.
The 55W halogen bulb is located in a holder. The holders are secured in the lamp housing by rotating through
approximately 10
°
. The holder has a connector to allow for connection to the electrical harness.
