LR2 (LF) L6-3.2L (2008)
/l6-3.2l/Page-493004.png)

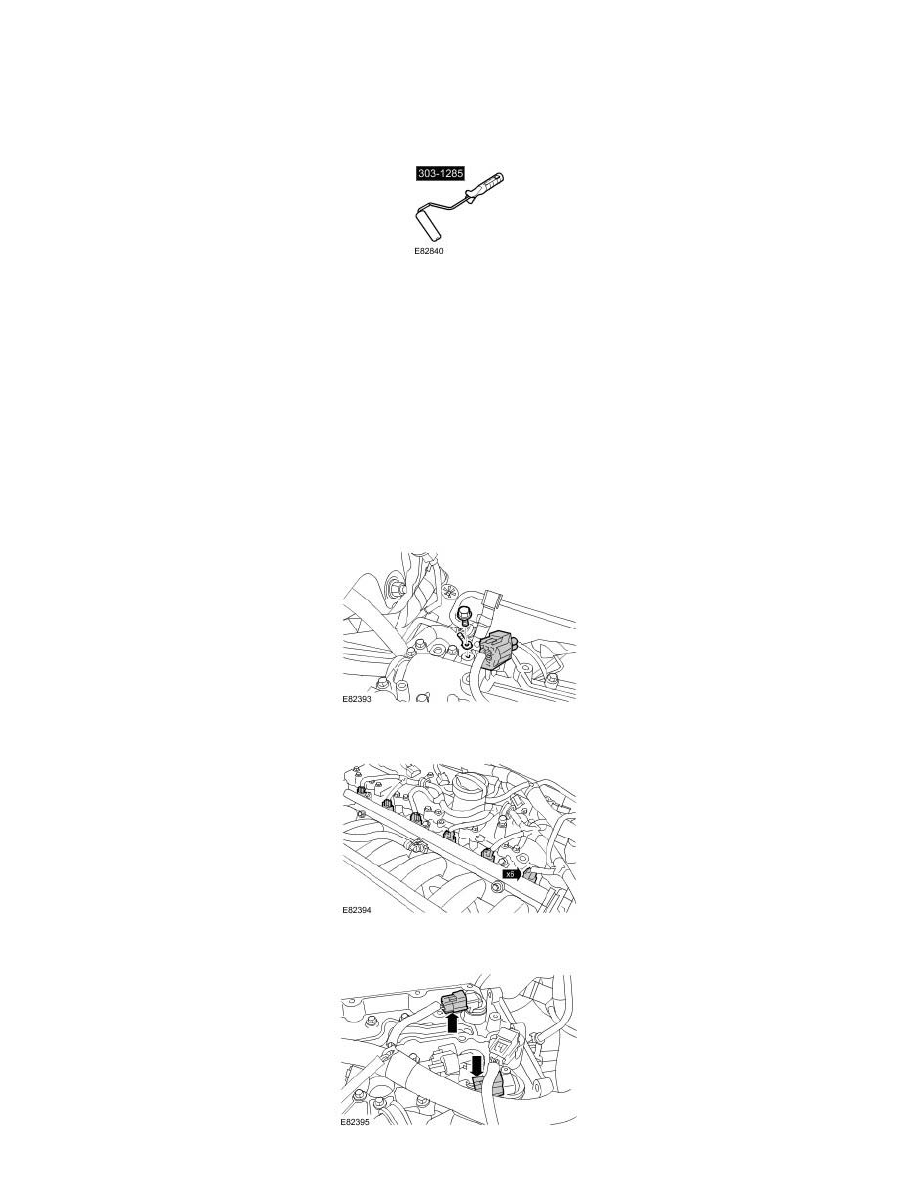

Special Service Tools: Roller, Sealant
7. CAUTION: Extreme cleanliness must be exercised when handling these components.
Position the camshafts, if required.
8. NOTE: The component must be installed within 20 minutes of the sealant application.
NOTE: Do not tighten at this stage.
Using the sequence illustrated, tighten the valve cover to cylinder head bolts evenly and progressively a few turns at a time, until there is full
contact.
9.
Torque:
16 Nm
