AIR CONDITIONING
NEW RANGE ROVER
6
DESCRIPTION AND OPERATION

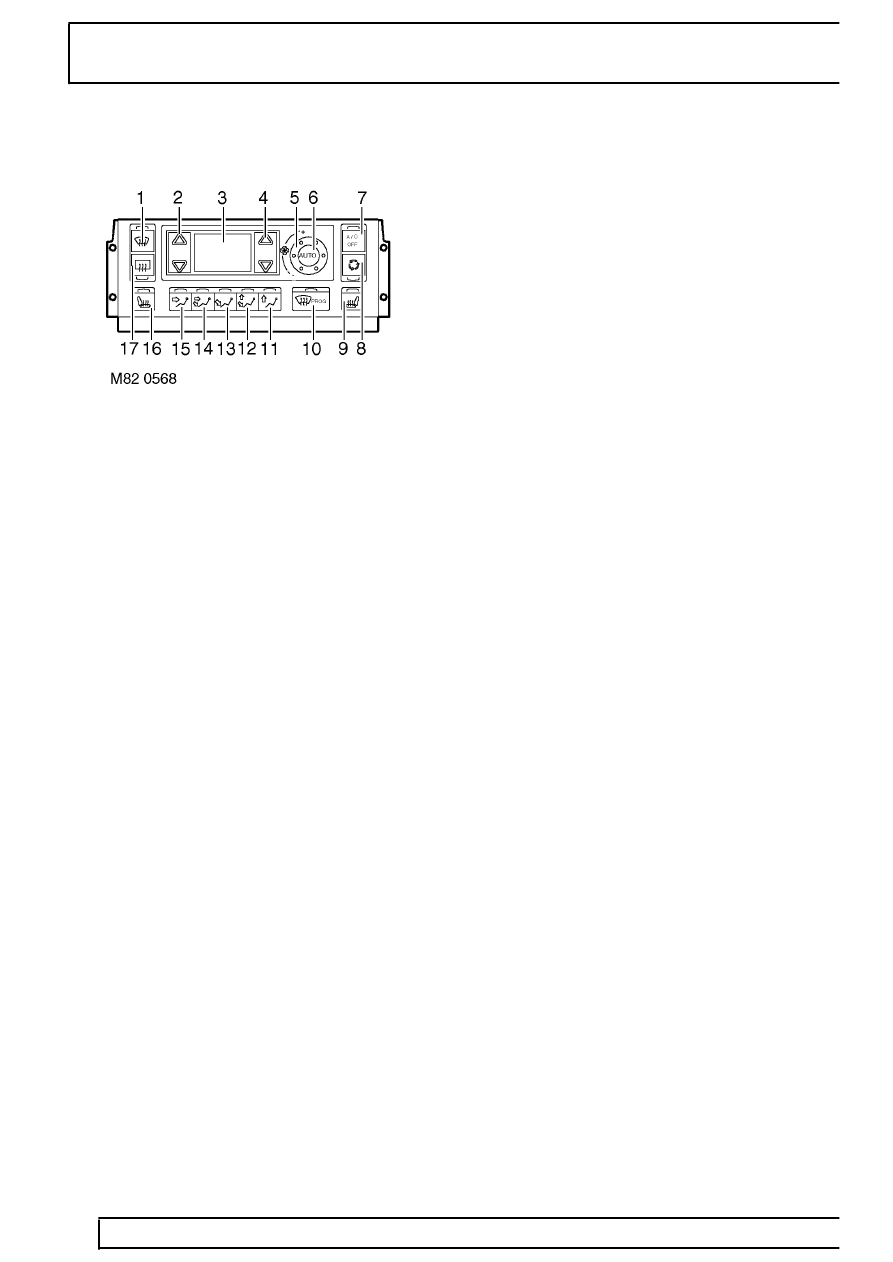

ATC ECU control panel
1. Windscreen heater switch
2. LH temperature switch
3. LCD
4. RH temperature switch
5. Blower switch
6. Automatic mode switch
7. Compressor (economy) switch
8. Fresh/ Recirculated air switch
9. RH front seat heater switch
10. Demist mode switch
11. Windscreen/ Side window distribution switch
12. Windscreen/ Side window and footwells
distribution switch
13. Footwells distribution switch
14. Face and footwells distribution switch
15. Face distribution switch
16. LH front seat heater switch
17. Rear screen heater switch
Windscreen heater switch. Push switch for control of
the windscreen heaters. A timed function that
automatically goes off after approximately 4 minutes,
or immediately if the switch is pressed again. The
switch LED is illuminated while the heaters are active.
LH temperature switch. Rocker switch that sets air
temperature target for the LH side of the vehicle
interior:
•
Temperature is increased by pressing the
upper part of the switch and decreased by
pressing the lower part of the switch.
•
A short press of the switch gives a 1
°
C (2
°
F) change of the air temperature target
and a long press gives a scrolling
movement of the air temperature target.
•
HI or LO is displayed when the system
reaches an extreme of the temperature
range.
•
Passenger side temperature cannot be set
outside the tolerance of 6
°
C (11
°
F) above
or below the temperature set on the
driver’s side.
LCD. Display that shows the following:
•
Blower speed when set manually (fan
symbol and dashed line). The longer the
dashed line, the faster the blower speed.
•
Automatic (climate control) mode activated
(AUTO legend).
•
Fault detected (handbook symbol).
•
LH and RH air temperature targets in
°
C
(
°
F).
•
Low external air temperature warning
(snowflake symbol). Comes on if the
ambient air temperature is approximately 3
°
C (37.5
°
F) or less, to warn of the
possibility of road ice.
•
Programmed demist function activated
(demist symbol + PROG legend).
•
Exterior air temperature in
°
C (
°
F) (EXT
legend and temperature value).
Permanently displayed while the system is
on.
