R380 Output Shaft Inspection
MANUAL GEARBOX
OVERHAUL
29

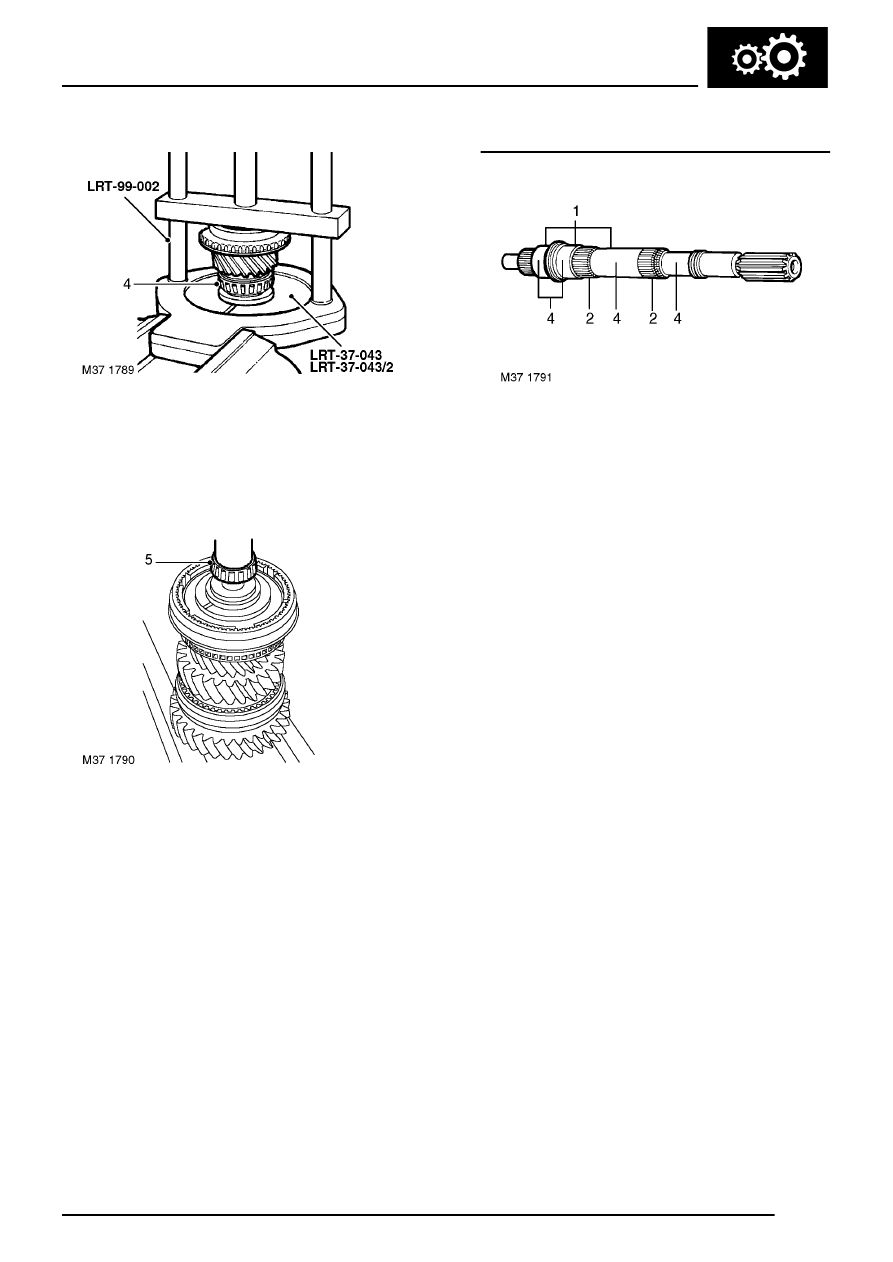

4. Using LRT-99-002, LRT-37-043 and
LRT-37-043/2, fit a new taper roller bearing.
5. Support the shaft under LRT-99-002 and using
a suitable mandrel, fit a new taper roller
bearing.
Output shaft - Inspection
1. Examine bearing journals for wear and scores.
2. Examine splines for wear and damage.
3. Use an air line to check that the main oil feed
from pump and feed to spigot bearing are
clear.
4. Check oil feed holes to roller bearing are clear.
