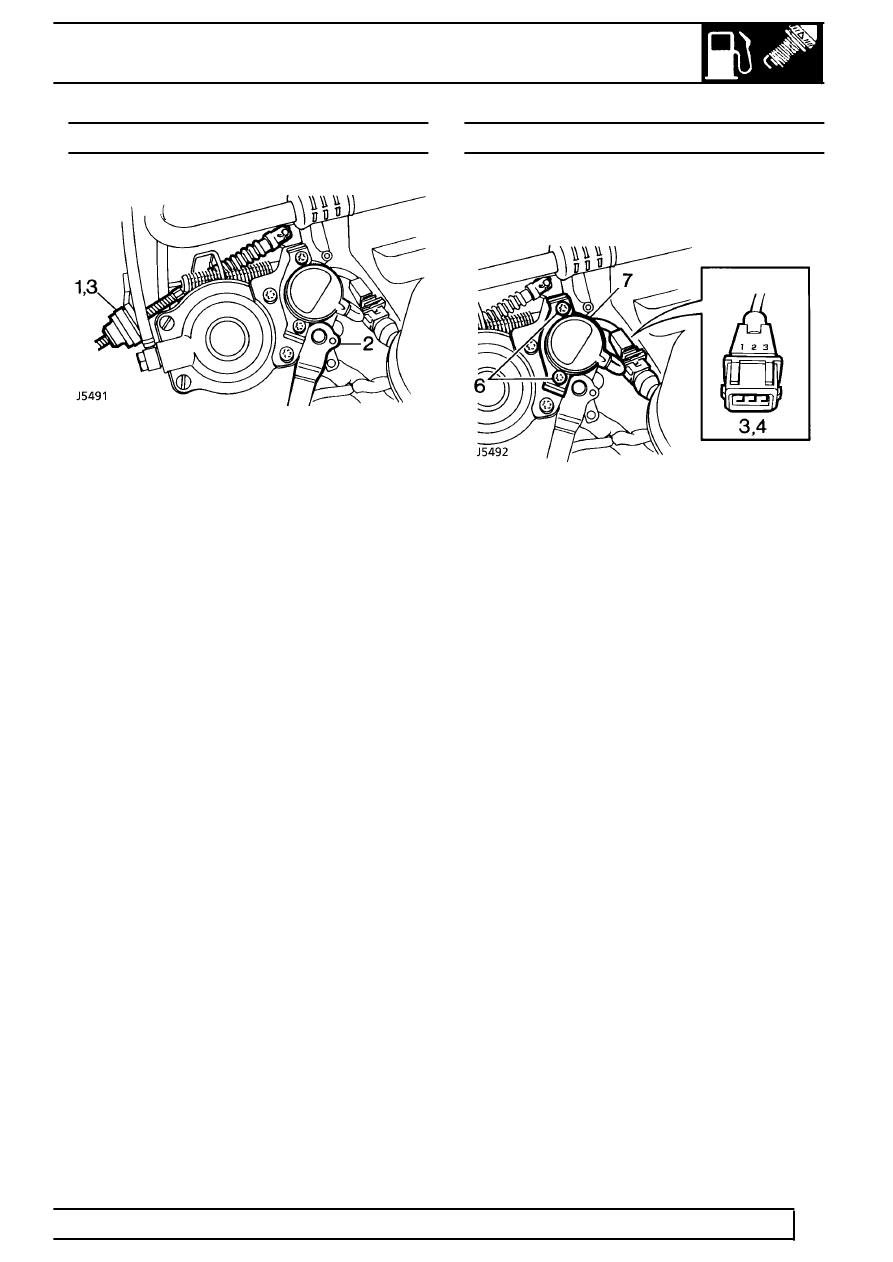

ADJUSTMENT
THROTTLE CABLE
Adjust
1. Loosen throttle cable adjustment ferrule.
2. Hold throttle lever in fully closed position.
3. Adjust outer cable, by rotating ferrule, to give
1.57 mm (0.062 in) of free play in the inner
cable.
4. Check that throttle opens fully when the throttle
is depressed.
EGR THROTTLE POSITION SENSOR
Check
1. Run engine until normal operating temperature is
reached.
2. Switch off engine and disconnect throttle position
sensor multiplug.
3. Connect an Ohmmeter across pins 1 and 3 of
multiplug. Ohmmeter should read between 1K
and 1.05K ohms.
4. Connect an Ohmmeter across pins 1 and 2 of
multiplug. Ohmmeter should read between 850
and 900 ohms.
5. If the readings are correct, EGR position sensor
is OK - reconnect multiplug.
6. Loosen 2 Torx screws securing position sensor.
7. Rotate position sensor to achieve correct
Ohmmeter readings, then tighten Torx screws.
8. Re-check Ohmmeter readings, then reconnect
multiplug.
